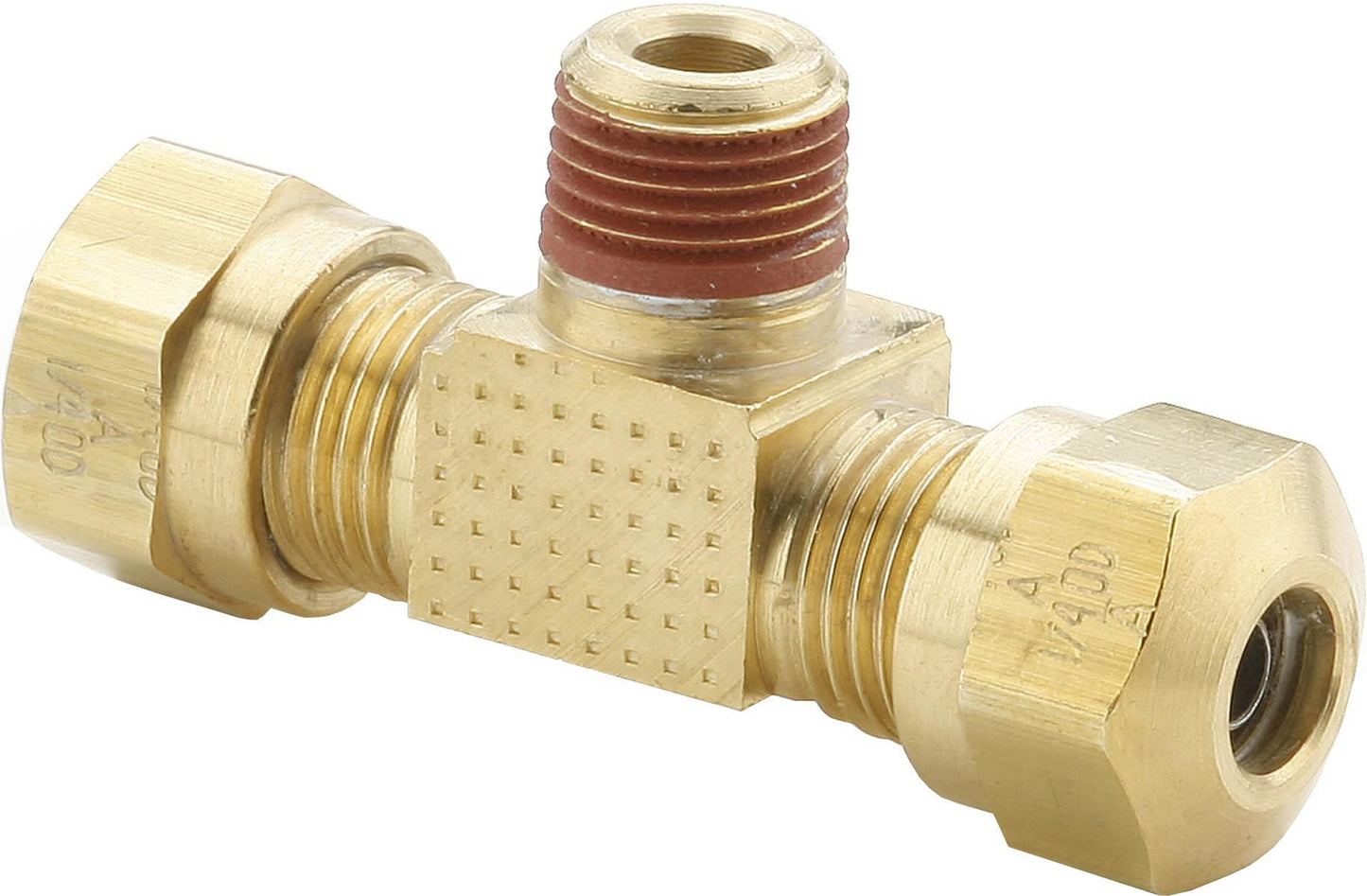

Parker DOT Compression - Nylon Male Branch Tee 1/2x1/2x1/4
(Pack of
10.0)
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Parker DOT Compression - Nylon Bulkhead Union 5/8x5/8
Couldn't load pickup availability
DOT Compression Insert Male Brass 1/2 x 3/8"
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/2x1/2
Couldn't load pickup availability
Mini Push Type Grease Gun with Steel Barrel
Couldn't load pickup availability
Union, 3/4"
Couldn't load pickup availability
Parker DOT Compression - Nylon Tubing FemaleConnector 3/8x3/8
Couldn't load pickup availability
Mini Push Type Grease Gun with Steel Barrel
Couldn't load pickup availability
Union, 3/4"
Couldn't load pickup availability
Parker DOT Compression - Nylon Tubing FemaleConnector 3/8x3/8
Couldn't load pickup availability
Nylon Hose Guard 1.81" ID x 25' Length
Couldn't load pickup availability
Nylon Hose Guard 1.42" ID x 25' Length
Couldn't load pickup availability
Nylon Tubing 5/32" OD x 100'
Couldn't load pickup availability
Drill Rod, Water Hardened, W1 1095 Steel
Couldn't load pickup availability
Cutting Tool Bundle
Couldn't load pickup availability
Drill Rod, Water Hardened, W1 1095 Steel
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 1608810 |
|---|---|
| Class | Compression Air Brake Fittings |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Branch Tee |
| Connection Type A x B x C | Tube x Tube x Pipe |
| Fitting Dimension A | 1/2 " |
| Fitting Dimension B | 1/2 " |
| Fitting Dimension C | 1/4 " |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
