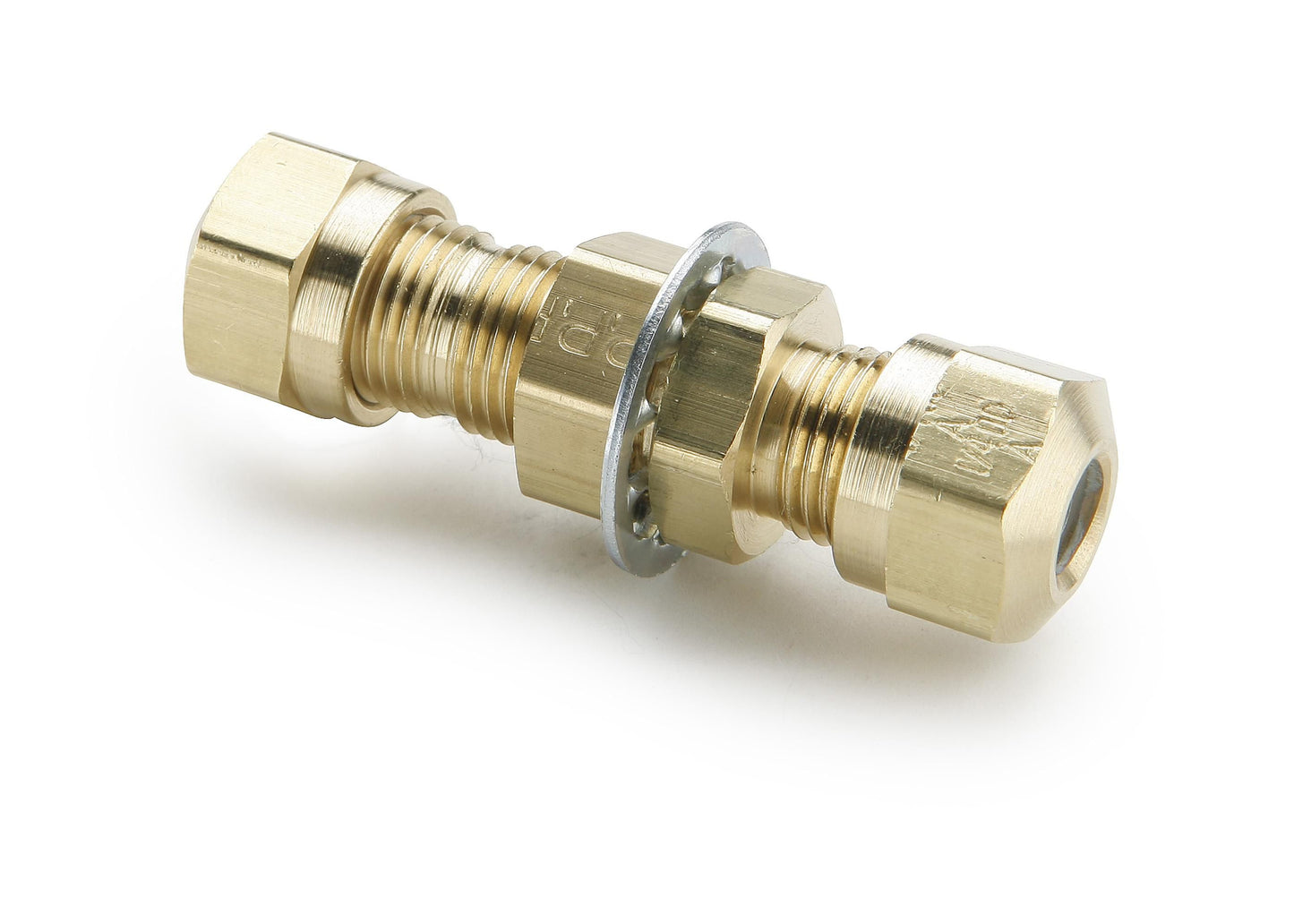

Parker DOT Compression - Nylon Bulkhead Union 5/8x5/8
(Pack of
10.0)
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 8-11
Frequently Bought Together
Parker DOT Compression - Nylon Union Tee 1/2x1/2x1/2
Couldn't load pickup availability
DOT Compression Run Tee Male 1/2 x 3/8 x 1/2"
Couldn't load pickup availability
Air Brake Compression Elbow Male Brass 5/32 x 1/8"
Couldn't load pickup availability
Parker DOT Compression - Nylon Female Elbow 90 Degrees 1/2x3/8
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/2"
Couldn't load pickup availability
DOT Compression Sleeve Brass 3/8"
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/2 x 1/2"
Couldn't load pickup availability
DOT Compression Connector Female Brass 1/2 x 7/8"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 5/8 x 3/4"
Couldn't load pickup availability
OilShield Rubber Air Hose Assembly 3/8" x 05'
Couldn't load pickup availability
BluShield Rubber Pressure Washer Hose Assembly 1/4" x 25'
Couldn't load pickup availability
Rubber Air Hose Reel Dual Arm Assembly 3/4" x 50'
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Wheel Flare Molding Clip with Sealer Nylon
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 1608826 |
|---|---|
| Class | Compression Air Brake Fittings |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Bulkhead Union |
| Connection Type A x B | Tube x Tube |
| Fitting Dimension A | 5/8 " |
| Fitting Dimension B | 5/8 " |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 3.5 lb |
