Home Air Break Standard Parker DOT Field Attachable - Female Connector 1/2x7/8-20
Air Break Standard

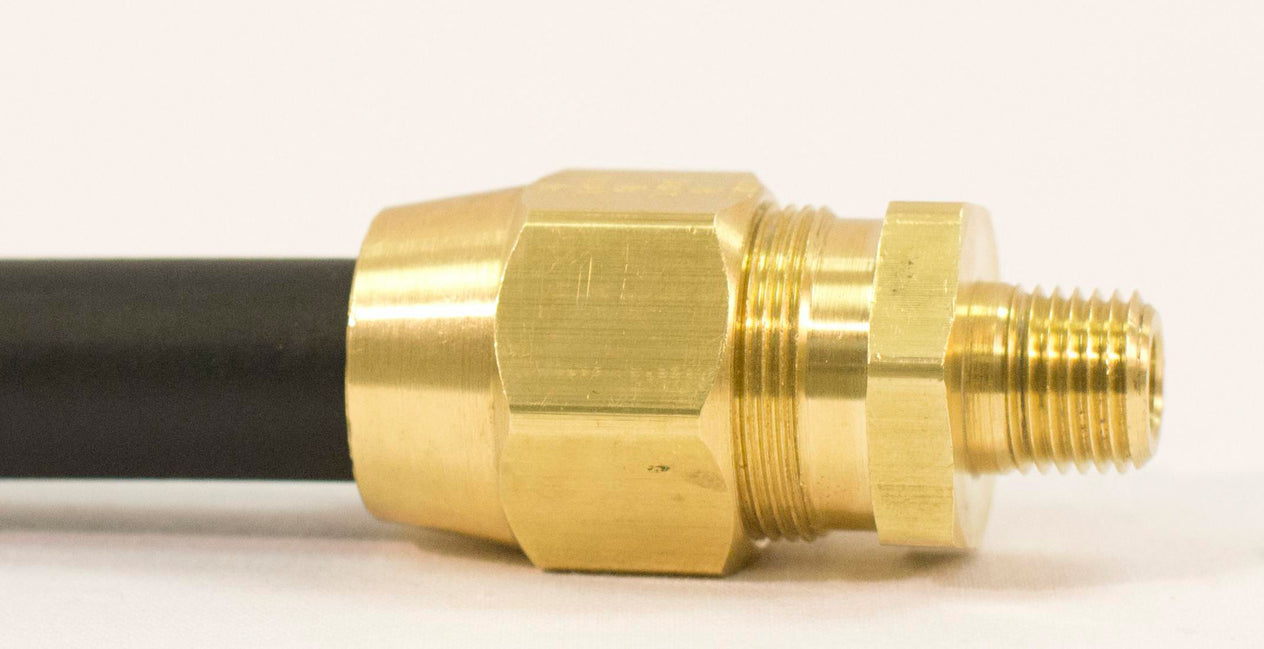

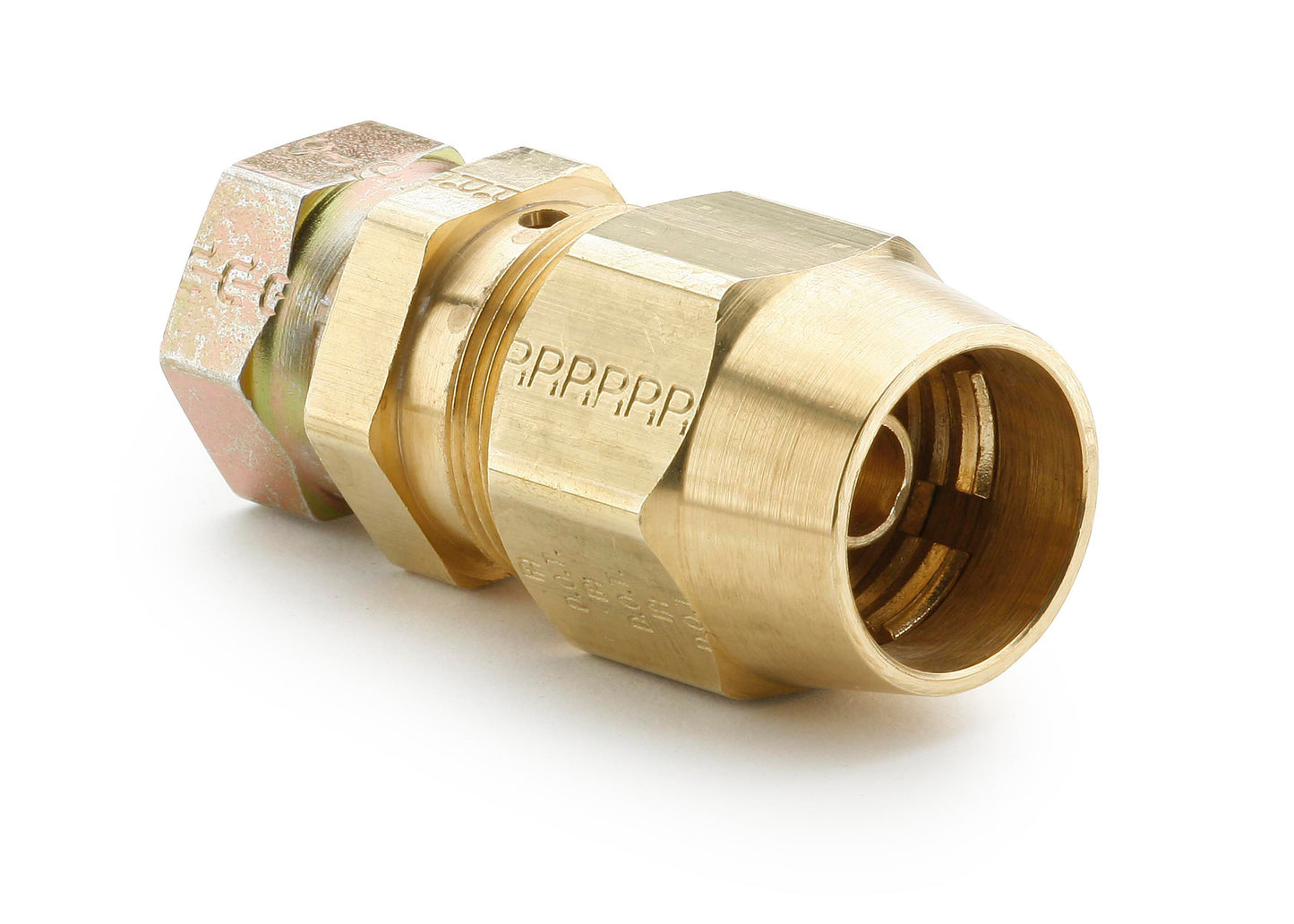

Parker DOT Field Attachable - Female Connector 1/2x7/8-20
(Pack of 5.0)

Parker

Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle

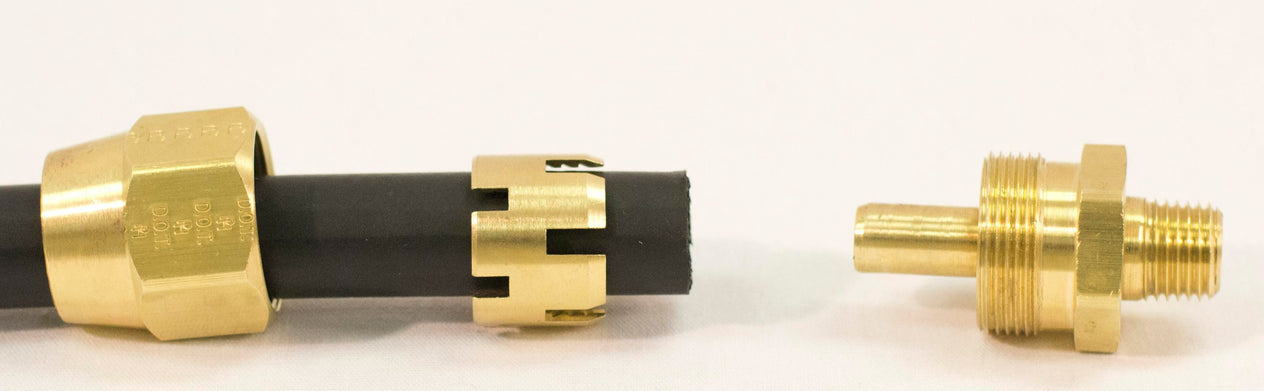

Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
NOTE: Use with Air Brake Adapters.

Read More
Check availability inventory
Item is not part of your custom catalog. Please contact a Customer Service Representative for more information.

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


DOT Compression Connector Male Brass 3/8 x 1/2"

Item#: 1520683

DOT Compression Sleeve Brass 3/8"

Item#: 84322

DOT Compression Sleeve Brass 3/8"

Item#: 1520677

Parker DOT Compression - Nylon Male Elbow 90 Degrees 5/8x3/8

Item#: 96882P

DOT Compression Connector Male Brass 1/2 x 1/2"

Item#: 97260

DOT Compression Connector Female Brass 1/2 x 7/8"

Item#: 97258

Parker DOT Compression - Nylon Male Branch Tee 1/2x1/2x3/8

Item#: 84302P

Parker DOT Compression - Nylon Female Elbow 90 Degrees 3/8x1/4

Item#: 84290P
No product placeholder

H56908

Item#: 1183100

Pneumatic 50:1 Grease Pump Kit for 35lb Drums

Item#: 1677929

Premium Greasing Accessory 8 Piece Kit

Item#: 1677924

Quick Connect Grease Coupler, 1/8" NPT

Item#: 1677922
No product placeholder

Mineral Hydraulic Oil 5 Gal.

Item#: 1634831
No product placeholder

Torrent Spare Hinge With Fasteners

Item#: PMSMAS125
No product placeholder

Ss Window Trim Plate Mk 2

Item#: PSMCM145

Product Description

Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle
Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
NOTE: Use with Air Brake Adapters.

Technical Specifications

Item#: 97258P
Class Field Attachable Air Brake Fittings
Fitting Type Compression - Rubber
Style DOT
Material Brass
Configuration Female Connector
Connection Type A x B Hose I.D. x Straight Thread
Fitting Dimension A 1/2 "
Fitting Dimension B 7/8-20 "
Dash Size -8
UNSPSC #: 25171700
TAA Compliant: Yes
