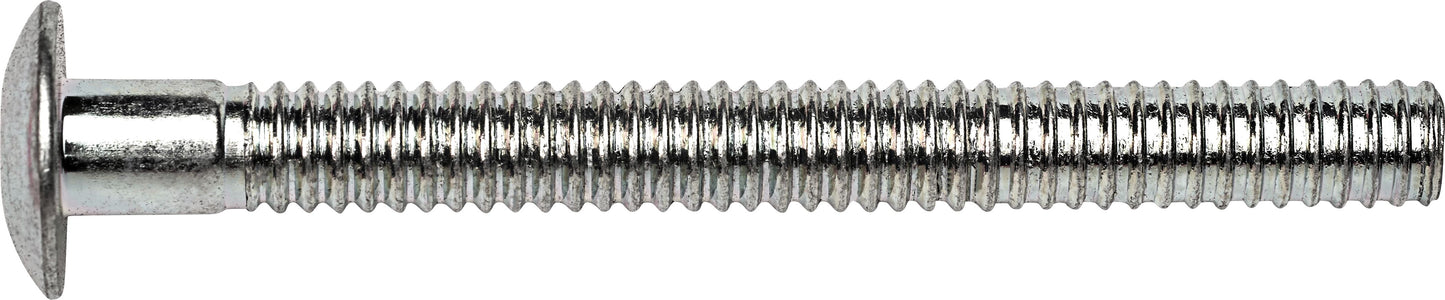

Multi-Grip Lockbolt Truss Head Steel 1/4"
(Pack of
100.0)
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.
• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 11-124
Frequently Bought Together
Hammerlock Cotter Pin Kit 360Pcs
Couldn't load pickup availability
Standard Self-Drilling Wallboard Anchor Kit 41Pcs
Couldn't load pickup availability
Masonry Anchor Assortment 700Pcs
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Lockbolt 3/16"
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Steel 1/4"
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Aluminum 3/16"
Couldn't load pickup availability
Pneudraulic Rivet Tool 80 to 90PSI
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Weatherstrip Retainer Nylon 5 x 15mm
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Product Description
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Technical Specifications
| Item#: | 1543724 |
|---|---|
| Series | Multi-Grip |
| Diameter | 1/4 " |
| Maximum Hole Size | 0.265 " |
| Grip Range | 0.312 – 1.250 " |
| Head Style | Truss Head |
| Length | 2.560 " |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Diameter | 0.531 – 0.594 " |
| Head Height | 0.103 – 0.115 " |
| Tensile Strength | 2,550 lb |
| Shear Strength | 2,200 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 3.75 lb |
