Setting Punch and Reversible Die Set
(Pack of 1.0)

Kent Automotive

• Assembles cap and socket for female connection or stud and eyelet for male connection
To assemble cap and socket for female connection
1. Place cap in reversible die.
2. Punch hole in material large enough to fit the cap barrel through.
3. Place socket over material and cap.
4. Place setting tool on top of cap and socket in reversible die and strike top of tool with hammer.

To install eyelet and stud for male connection
1. Flip the reversible die to the other side.
2. Place eyelet in reversible die. To finish installation, repeat steps 2, 3 and 4 above, using the eyelet and stud.

Check availability inventory

Quantity

Item is not part of your custom catalog. Please contact a Customer Service Representative for more information.

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together

Hook and Loop Assortment with Utility Cutter

Snap Fastener Hand Press Tool with 4Pcs Die Set

Snap Fastener Cutting Punch Tool

Hood and Trunk Molding Retaining Clip Nylon Black

Radiator Grille Nut M4.2-1.41

Nylon Cable Tie 7-1/2" Black

Snap Fastener Cutting Punch Tool

Snap Fastener Stud Male Component

Snap Fastener Hand Press Tool with 4Pcs Die Set

Product Description

• Assembles cap and socket for female connection or stud and eyelet for male connection
To assemble cap and socket for female connection
1. Place cap in reversible die.
2. Punch hole in material large enough to fit the cap barrel through.
3. Place socket over material and cap.

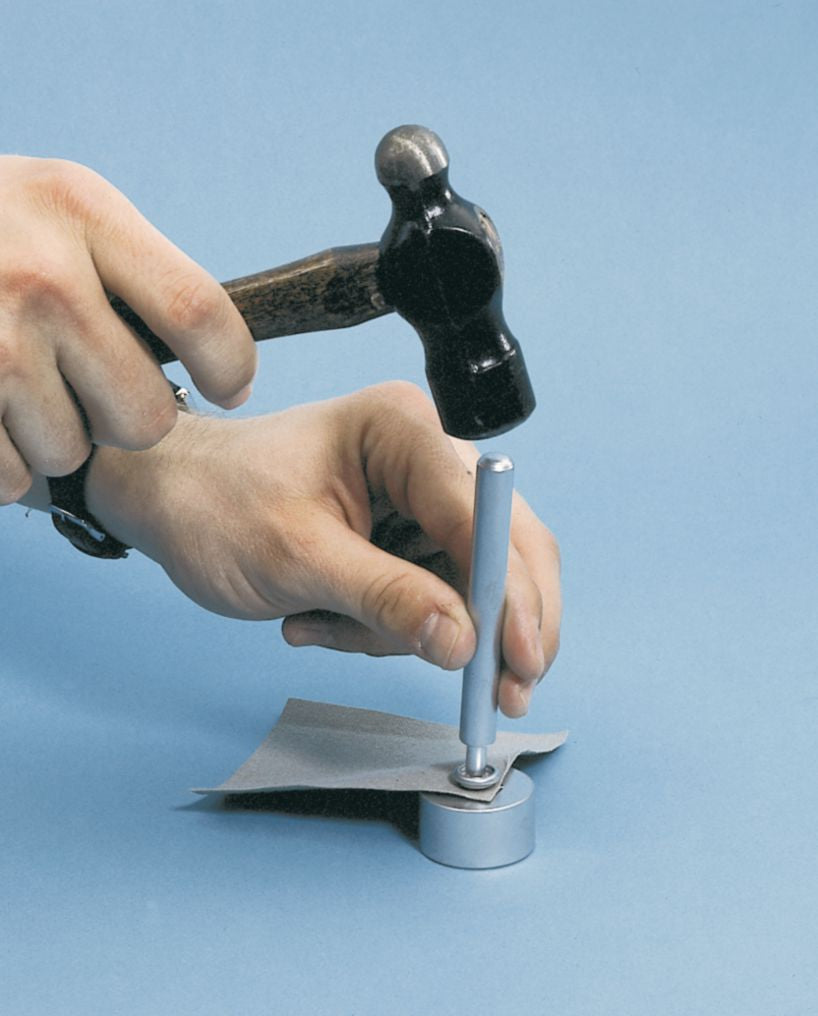

4. Place setting tool on top of cap and socket in reversible die and strike top of tool with hammer.

To install eyelet and stud for male connection
1. Flip the reversible die to the other side.
2. Place eyelet in reversible die. To finish installation, repeat steps 2, 3 and 4 above, using the eyelet and stud.

Technical Specifications

Item#:	97156
Description	Punch and Die Set
Type	Snap Fastener
UNSPSC #:	31162413
TAA Compliant:	Yes
Weight:	0.47 lb
