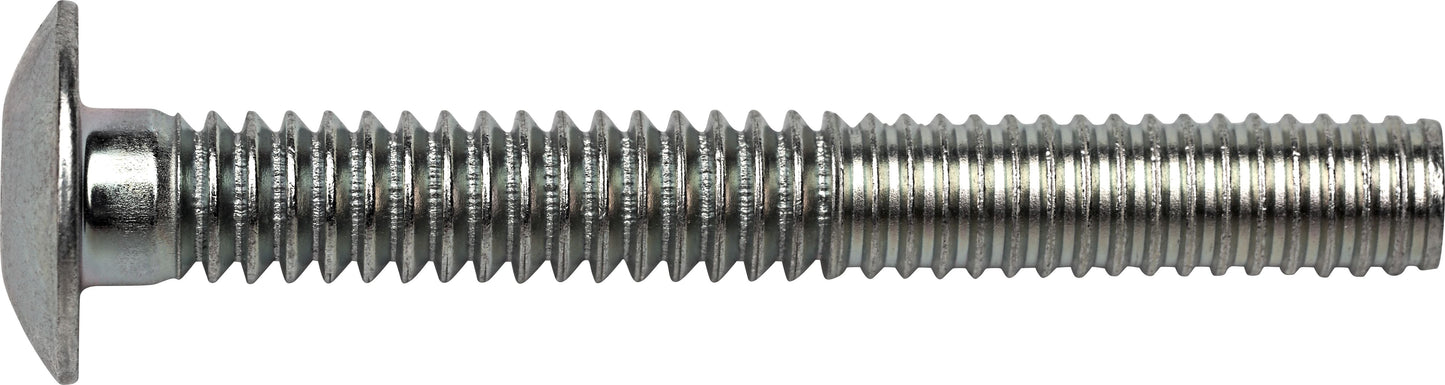

Multi-Grip Lockbolt Truss Head Steel 1/4"
(Pack of
100.0)
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.
• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 11-124
Frequently Bought Together
Loop Strip General-Purpose Adhesive 1" x 5Yards
Couldn't load pickup availability
Type 170 Mushroom Lock 1" x 5Yards
Couldn't load pickup availability
Type 400 Mushroom Lock 1" x 5Yards
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 3/8"
Couldn't load pickup availability
HuckBolt® C50L® Rivet Lockbolt Carbon Steel 1/2"
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Steel 3/16"
Couldn't load pickup availability
Solid Rivet Brazier Head Soft Aluminum 1/4"
Couldn't load pickup availability
Tigerbolt® Nosepiece for 1543731 Rivet Tool 3/16"
Couldn't load pickup availability
HuckBolt® Hucktainer® Rivet Lockbolt 3/8"
Couldn't load pickup availability
Cable Tie Screw Mount #10 Screw Black
Couldn't load pickup availability
H3 Halogen Miniature Bulb 70W 24V
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Product Description
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Technical Specifications
| Item#: | 1543723 |
|---|---|
| Series | Multi-Grip |
| Diameter | 1/4 " |
| Maximum Hole Size | 0.265 " |
| Grip Range | 0.063 – 0.625 " |
| Head Style | Truss Head |
| Length | 1.965 " |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Diameter | 0.531 – 0.594 " |
| Head Height | 0.103 – 0.115 " |
| Tensile Strength | 2,550 lb |
| Shear Strength | 2,200 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 2.6455 lb |
