Hand Wash Sink with Axion Eye/Face Wash
(Pack of
1.0)

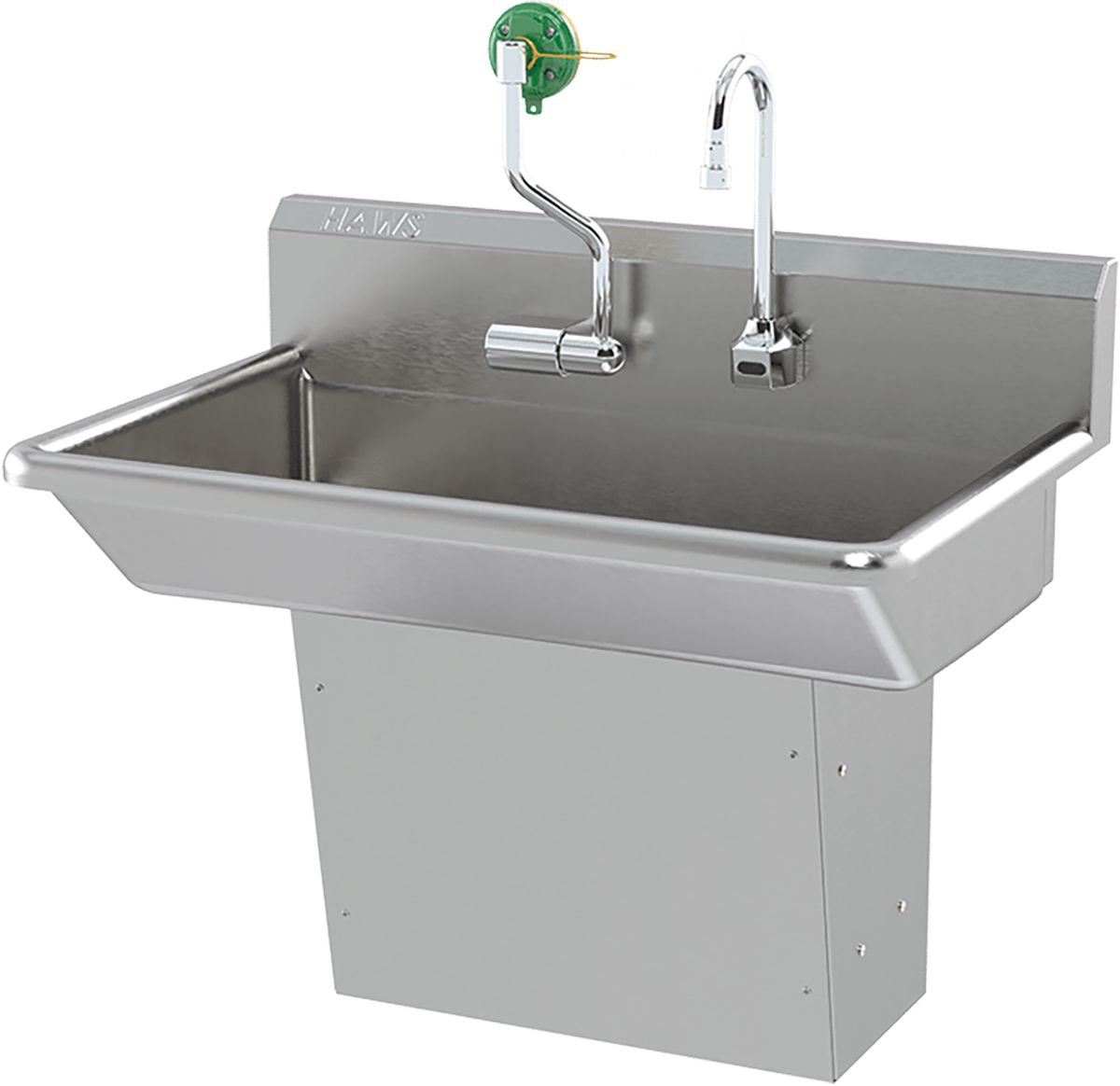

A is a wall-mounted barrier-free hand wash sink equipped with a motion-activated goose-neck faucet. 30" wide 14 Gauge Type 304 Stainless Steel sink and wall supports incorporate a durable satin finish, and a removable front panel for access to the plumbing. Hand-wash motion-activated faucet provides 1.2 gpm of laminar flow, includes a separate 0.5 gpm laminar flow nozzle when low flow is required, and is powered via 110VAC wall power or battery power. Included is an eye/face wash which features an inverted directional laminar flow and achieves Zero Vertical Velocity™, supplied by an integral 3.7 gpm flow control and yellow pop-off dust cover. An ASSE 1071-certified adjustable thermostatic mixing valve tempers the hot and cold water inlets, supplying both the faucet and the eye/face wash to ensure user comfort and ANSI compliance. 1-1/2" male NPT integral drain with 1-1/2" tailpiece and trap are included. Also included: universal eyewash sign and operation label, along with a full-sized rough-in template for easy installation.
• 30" wide 14-gauge Type 304 Stainless Steel sink mounted on 14 gauge Type 304 Stainless Steel sink supports
• Motion-activated faucet operation (operating on 110VAC or battery power) for safety and peace of mind
• Supplied with .5 gpm and 1.2 gpm laminar flow faucet nozzles, with an optional 2.2 gpm laminar flow nozzle available for higher flow applications
• Mixing valve included supplies tepid water to the eyewash and faucet
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Beautiful satin finish resists stains and corrosion
• Easy access to the mixing valve, faucet solenoid valve, plumbing and drain through the large front panel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Unmounted Eye/Face Wash
Couldn't load pickup availability
Portable Air-Pressurized Emergency Eyewash
Couldn't load pickup availability
Eye Wash Station Portable Pressurized
Couldn't load pickup availability
Spray Cup Bundle - 400ml Solvent-Based Chemical
Couldn't load pickup availability
Spray Cup Big Bundle - Solvent-Based Chemical
Couldn't load pickup availability
Spray Cup Bundle - 650ml Solvent-Based Chemical
Couldn't load pickup availability
Miranda Black frame, gray lens, CSA
Couldn't load pickup availability
Ferno Black frame, clear lens, CSA
Couldn't load pickup availability
SenTec, clear Anti-Fog lens, CSA
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Wheel House Molding Split Rivet Aluminum 3/16"
Couldn't load pickup availability
Axion MSR Barrier-free Recessed Eye/Face Wash
Couldn't load pickup availability
Faucet-Mounted Eyewash Axion Eyepod
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Product Description
A is a wall-mounted barrier-free hand wash sink equipped with a motion-activated goose-neck faucet. 30" wide 14 Gauge Type 304 Stainless Steel sink and wall supports incorporate a durable satin finish, and a removable front panel for access to the plumbing. Hand-wash motion-activated faucet provides 1.2 gpm of laminar flow, includes a separate 0.5 gpm laminar flow nozzle when low flow is required, and is powered via 110VAC wall power or battery power. Included is an eye/face wash which features an inverted directional laminar flow and achieves Zero Vertical Velocity™, supplied by an integral 3.7 gpm flow control and yellow pop-off dust cover. An ASSE 1071-certified adjustable thermostatic mixing valve tempers the hot and cold water inlets, supplying both the faucet and the eye/face wash to ensure user comfort and ANSI compliance. 1-1/2" male NPT integral drain with 1-1/2" tailpiece and trap are included. Also included: universal eyewash sign and operation label, along with a full-sized rough-in template for easy installation.• 30" wide 14-gauge Type 304 Stainless Steel sink mounted on 14 gauge Type 304 Stainless Steel sink supports
• Motion-activated faucet operation (operating on 110VAC or battery power) for safety and peace of mind
• Supplied with .5 gpm and 1.2 gpm laminar flow faucet nozzles, with an optional 2.2 gpm laminar flow nozzle available for higher flow applications
• Mixing valve included supplies tepid water to the eyewash and faucet
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Beautiful satin finish resists stains and corrosion
• Easy access to the mixing valve, faucet solenoid valve, plumbing and drain through the large front panel
Technical Specifications
| Item#: | 1647995 |
|---|---|
| Style | Wall Mount |
| Type | Eye/Face Wash Station |
| Description | Eye/Face Wash Station |
| Flow Rate | 1.2 gal/min |
| Water Supply | 1-1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA B125.1, CSA B45.4, NSF61, ASSE 1017, ASSE 1070-2015, ADA Compliant |
| Material | Stainless Steel |
| Mount Style | Wall |
| Color | Silver |
| Eyewash Bowl Diameter | 30 " |
| Width | 20 " |
| Height | 35-3/8 " |
| Eye Wash Material | Stainless Steel |
| Body Material | Stainless Steel |
| Includes | Universal Eyewash Sign, Operation Label, Template |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
