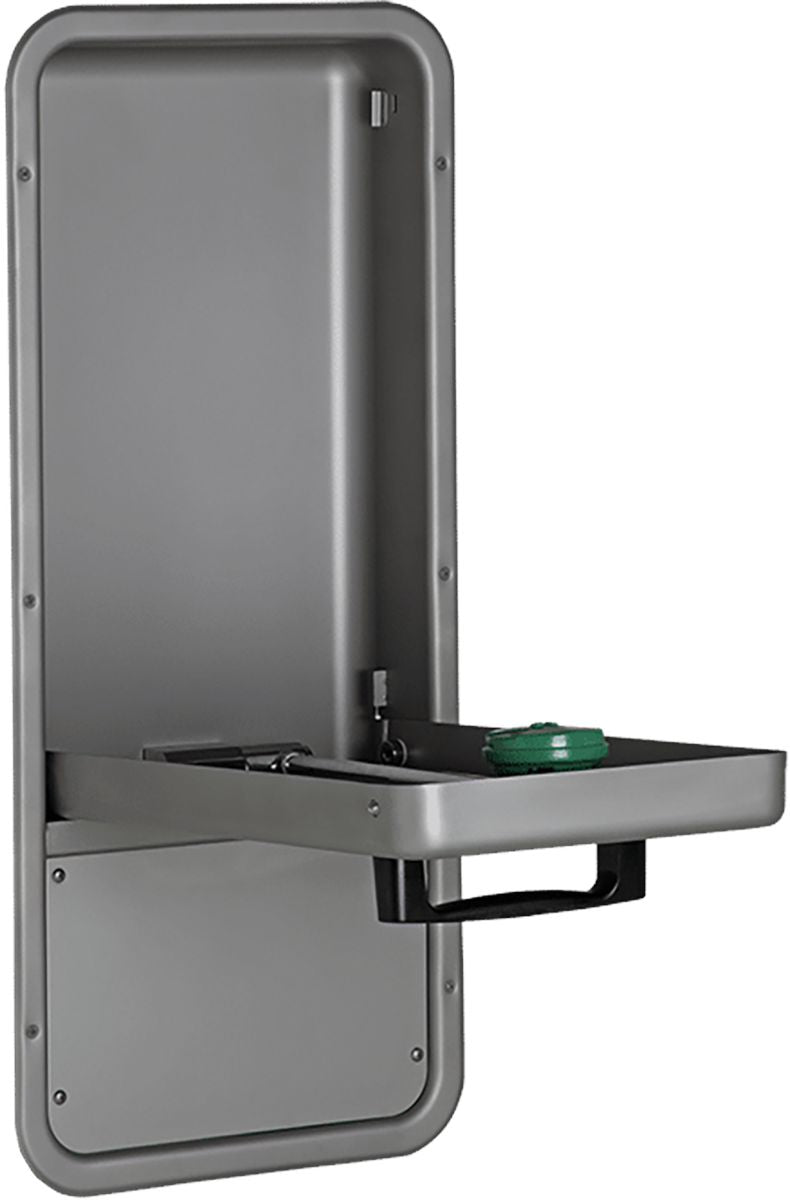

Axion MSR Barrier-free Recessed Eye/Face Wash
(Pack of
1.0)
A barrier-free eye/face wash includes a wash head featuring an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 4.2 gpm flow control, a fully recessed wall mounted 18 Gauge, Type 304 stainless steel deep-drawn cabinet, wheelchair accessibility, and polished chrome-plated brass pull-down valve with easy access in-line strainer. Unit also includes brass pipe and fittings, a drain pan, a front-access maintenance panel, universal sign, 1/2" NPT(M) inlet and 2" NPT(F) drain. Operating pressure is 30 - 90 psi
• The hide-away design stays protected from debris when not in use
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• 18 Gauge Type 304 Stainless Steel recessed cabinet is a deep-drawn heavy duty structure with smudge resistant bead blast finish
• One piece drain tray catches waste fluid during eyewash use
• Easy access exterior mounted in-line strainer
• The eye/face wash head is easily activated by the emergency equipment's pull-down design
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Sink Mount Eye/Face Wash
Couldn't load pickup availability
Axion MSR Unmounted Eye/Face Wash
Couldn't load pickup availability

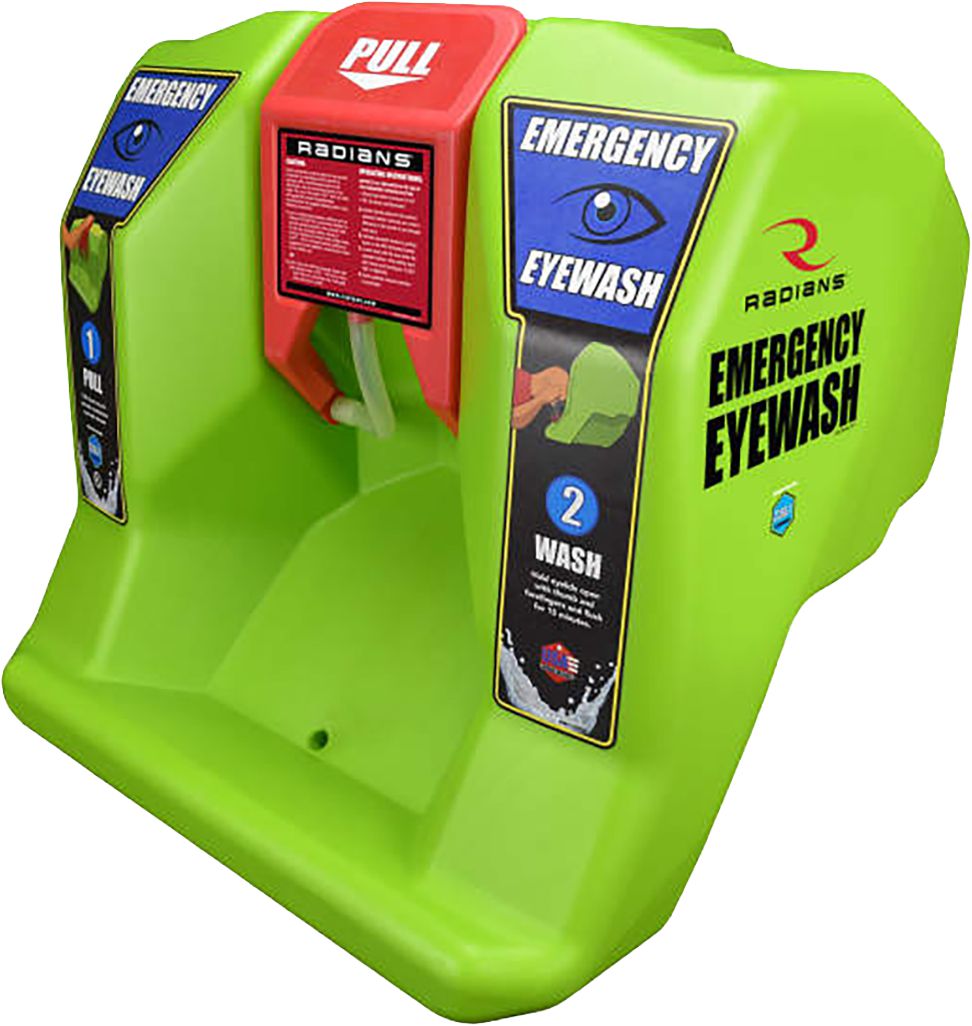

Portable Air-Pressurized Emergency Eyewash
Couldn't load pickup availability
Spray Cup Bundle - 180ml Water-Based Chemical
Couldn't load pickup availability
Spray Cup Bundle - 850ml Solvent-Based Chemical
Couldn't load pickup availability
Spray Cup Bundle - 400ml Solvent-Based Chemical
Couldn't load pickup availability
SenTec Bifocal, clear lens, 1.5 CSA
Couldn't load pickup availability
SenTec DX, clear Anti-Fog lens, CSA
Couldn't load pickup availability
Miranda Black frame, gray lens, CSA
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Eyewash Station
Couldn't load pickup availability
Axion MSR Corrosion Resistant Pedestal Eye/Face Wash
Couldn't load pickup availability
Faucet-Mounted Eyewash Axion Eyepod
Couldn't load pickup availability
Product Description
A barrier-free eye/face wash includes a wash head featuring an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 4.2 gpm flow control, a fully recessed wall mounted 18 Gauge, Type 304 stainless steel deep-drawn cabinet, wheelchair accessibility, and polished chrome-plated brass pull-down valve with easy access in-line strainer. Unit also includes brass pipe and fittings, a drain pan, a front-access maintenance panel, universal sign, 1/2" NPT(M) inlet and 2" NPT(F) drain. Operating pressure is 30 - 90 psi• The hide-away design stays protected from debris when not in use
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• 18 Gauge Type 304 Stainless Steel recessed cabinet is a deep-drawn heavy duty structure with smudge resistant bead blast finish
• One piece drain tray catches waste fluid during eyewash use
• Easy access exterior mounted in-line strainer
• The eye/face wash head is easily activated by the emergency equipment's pull-down design
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647993 |
|---|---|
| Style | Wall Mount |
| Type | Eye/Face Wash Station |
| Description | Eye/Face Wash Station |
| Flow Rate | 12 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified, Barrier Free Safety |
| Material | Plastic/Chrome-Plated Brass/Stainless Steel |
| Mount Style | Wall |
| Color | Silver |
| Width | 14 " |
| Height | 32 " |
| Eye Wash Material | Plastic |
| Body Material | Stainless Steel |
| Includes | Brass Pipe and Fittings, Front Access Maintenance Panel, Inspection Tag, Universal Identification Sign |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
