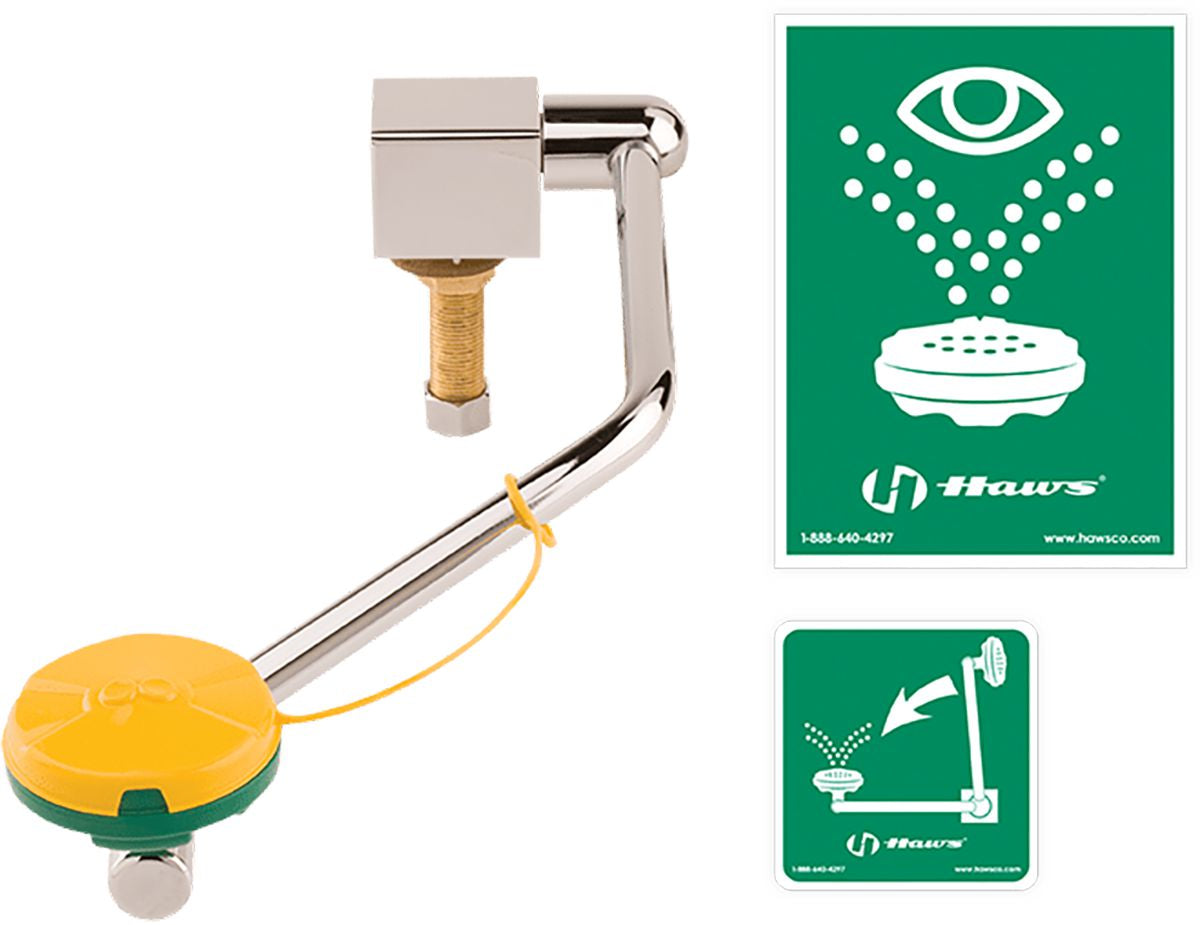

Axion MSR Sink Mount Eye/Face Wash
(Pack of
1.0)
A barrier-free sink/counter top or wall mount eye/face wash with an inverted directional laminar flow for Zero Vertical Velocity supplied by an integral 4.2 gpm flow control. Also included; polished chrome brass single action pull-down valve body, wheelchair accessibility, universal sign, and 1/2" O.D. (1.3 cm) slip joint inlet.
• Unit can be deck or wall mounted with easy change-over instructions
• Extended-length pull down arms are designed to accommodate wheelchair access
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Dust cover allows for the 7610 to stay protected from debris when not in use
• Activation and deactivation occur at a 30 degree angle from horizontal limiting splash of water onto counter or wall
• Rear mount design allows the sink to remain open to other uses
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Portable Self Contained Heated Eyewash
Couldn't load pickup availability
Axion MSR Sink Mount Eye/Face Wash
Couldn't load pickup availability
Axion MSR Unmounted Eye/Face Wash
Couldn't load pickup availability
Spray Cup Big Bundle - Water-Based Chemical
Couldn't load pickup availability
Spray Cup Bundle - 180ml Water-Based Chemical
Couldn't load pickup availability
Spray Cup Bundle - 850ml Solvent-Based Chemical
Couldn't load pickup availability
SenTec Bifocal, clear lens, 1.5 CSA
Couldn't load pickup availability
SenTec DX, clear Anti-Fog lens, CSA
Couldn't load pickup availability
Miranda Black frame, gray lens, CSA
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Eyewash Station
Couldn't load pickup availability
Axion MSR Corrosion Resistant Pedestal Eye/Face Wash
Couldn't load pickup availability
Axion MSR Barrier-free Recessed Eye/Face Wash
Couldn't load pickup availability
Product Description
A barrier-free sink/counter top or wall mount eye/face wash with an inverted directional laminar flow for Zero Vertical Velocity supplied by an integral 4.2 gpm flow control. Also included; polished chrome brass single action pull-down valve body, wheelchair accessibility, universal sign, and 1/2" O.D. (1.3 cm) slip joint inlet.• Unit can be deck or wall mounted with easy change-over instructions
• Extended-length pull down arms are designed to accommodate wheelchair access
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Dust cover allows for the 7610 to stay protected from debris when not in use
• Activation and deactivation occur at a 30 degree angle from horizontal limiting splash of water onto counter or wall
• Rear mount design allows the sink to remain open to other uses
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647988 |
|---|---|
| Style | Sink Mount |
| Type | Eye/Face Wash Station |
| Description | Eye/Face Wash Station |
| Flow Rate | 12 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified, ADA Accessible |
| Material | Plastic/Chrome-Plated Brass |
| Mount Style | Sink |
| Color | Silver |
| Width | 8-1/8 " |
| Height | 17 " |
| Eye Wash Material | Plastic |
| Includes | Inspection Tag, Universal Identification Sign, Valve Body, Wheelchair Accessibility |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181800 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
