Wire Thread Insert Repair Kit 5/8-11
(Pack of
1.0)
• Helically-wound thread repair – universally accepted and most cost-effective method of thread repair
• Manufactured from precision cold-formed 18-8 (Type 304) stainless steel

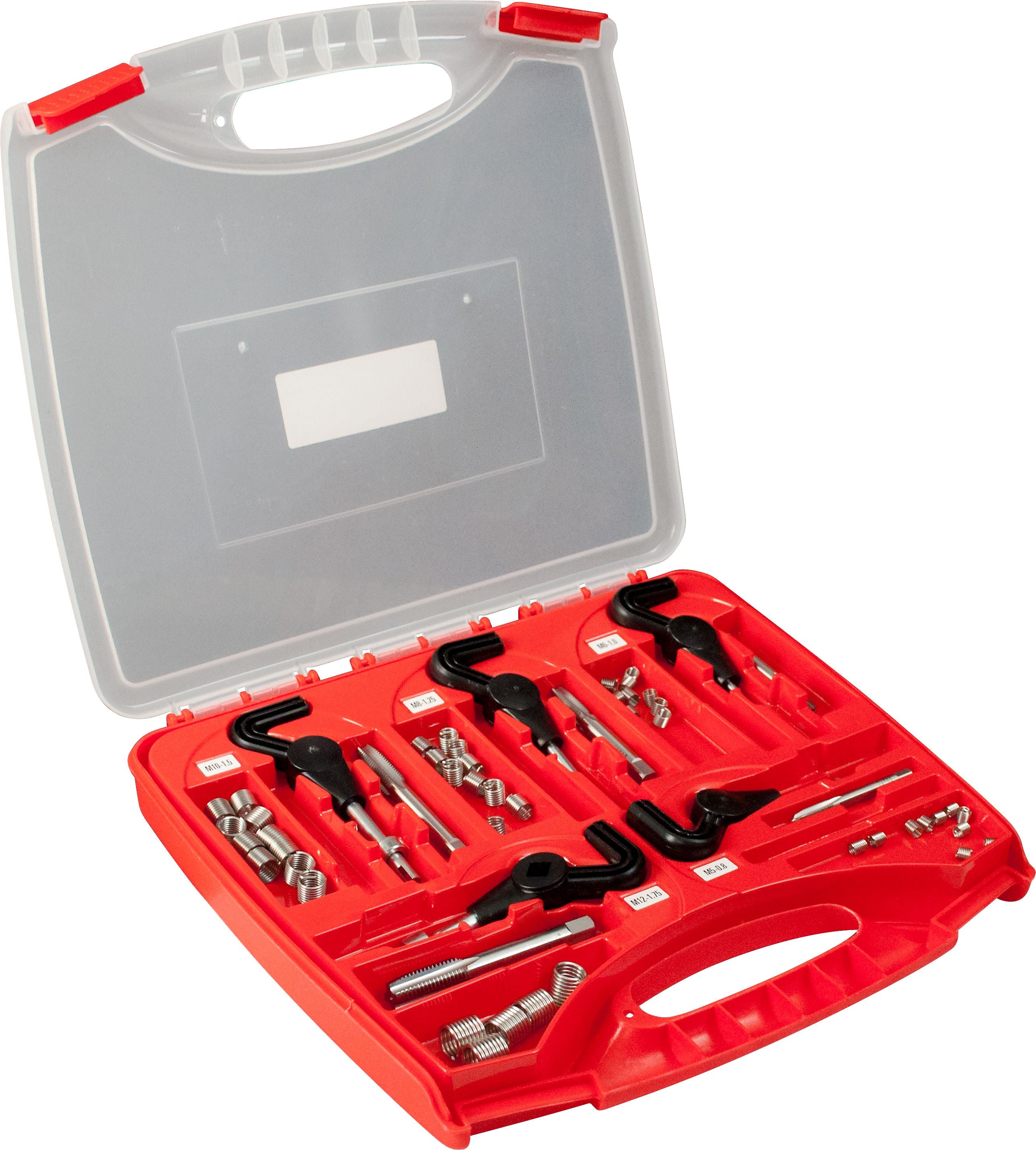

• Kits contain tap, inserts, installation tool, tang removal tool (select kits) and instructions, packaged in a sturdy and convenient storage box
• Inserts compensate for pitch and angle errors and share the load over more of the thread for stronger assemblies
• Tensile strength of at least 200,000 PSI
• Wide effective temperature range: –275°F to +774°F (–170°C to +412°C)
Fix-A-Thred® Insert Installation InstructionsDrill to clear out the damaged thread (if necessary).Thread insert tap supplied. Tap thread should match up with bolt.Wind insert in with light downward pressure until 1/4 to 1/2 turn below surface, driving tang towards bottom of the hole.Remove tool and sit back on top of tang. Tap down sharply. Do not try to twist tang off. For large fine threads, use long nose pliers and pull tang out.
To insure proper installation of inserts, always use the correct and corresponding tools.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Cryobit 1/4" Dia. T-Bit, 1-1/4" Short Shank Length, 1/4"-28 Thread
Couldn't load pickup availability
Cryobit #13 Dia. T-Bit, 1-1/4" Short Shank Length, 1/4"-28 Thread
Couldn't load pickup availability
Cryobit Drill Bit T Bit Stubby
Couldn't load pickup availability
Drill Rod, Water Hardened, W1 1095 Steel
Couldn't load pickup availability
Drill Rod, Water Hardened, W1 1095 Steel
Couldn't load pickup availability
Drill Rod, Water Hardened, W1 1095 Steel
Couldn't load pickup availability
Wire Thread Replacement Insert 3/8-24
Couldn't load pickup availability
Wire Thread Replacement Insert 1/2-13
Couldn't load pickup availability
SS Locking Thread Insert M16 x 2
Couldn't load pickup availability
Wire Wheel Metal Adapter 7/8"
Couldn't load pickup availability
Flap Wheel Metal Adapter Adapts to 3/4"
Couldn't load pickup availability
Wire Wheel Metal Adapter 3/4"
Couldn't load pickup availability
Wire Thread Insert Repair Kit 1-14
Couldn't load pickup availability
Wire Thread Insert Repair Kit M5-0.8
Couldn't load pickup availability
Wire Thread Insert Repair Kit M7-1
Couldn't load pickup availability
Product Description
• Helically-wound thread repair – universally accepted and most cost-effective method of thread repair• Manufactured from precision cold-formed 18-8 (Type 304) stainless steel
• Kits contain tap, inserts, installation tool, tang removal tool (select kits) and instructions, packaged in a sturdy and convenient storage box
• Inserts compensate for pitch and angle errors and share the load over more of the thread for stronger assemblies
• Tensile strength of at least 200,000 PSI
• Wide effective temperature range: –275°F to +774°F (–170°C to +412°C)
Fix-A-Thred® Insert Installation InstructionsDrill to clear out the damaged thread (if necessary).Thread insert tap supplied. Tap thread should match up with bolt.Wind insert in with light downward pressure until 1/4 to 1/2 turn below surface, driving tang towards bottom of the hole.Remove tool and sit back on top of tang. Tap down sharply. Do not try to twist tang off. For large fine threads, use long nose pliers and pull tang out.
To insure proper installation of inserts, always use the correct and corresponding tools.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 53829 |
|---|---|
| Type | Insert Repair Kit |
| Size | 5/8-11 |
| Recommended Drill Size | 21/32 " |
| Number of Pieces | 8 |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
