Universal Internal Thread Repair 11/16 to 13/16"
(Pack of
1.0)
• Quickly adjustable to any thread diameter and pitch within the size range indicated on tool
• The blade, made of Rc 62 high-speed steel, is guided by the existing undamaged thread to regroove the damaged section
• All tools come supplied with standard blades
• An advantage over taps is the ability to enter below the first damaged grooves – often at the start of the thread – and work in an outward direction
Applicable to most kinds of thread – inch, metric, right hand, left hand, fine or coarse.
Recommended for large internal threads in:
• Oil and gas production and pipelines
• Mining industry
• Large truck and heavy soil moving equipment
• Large production machinery

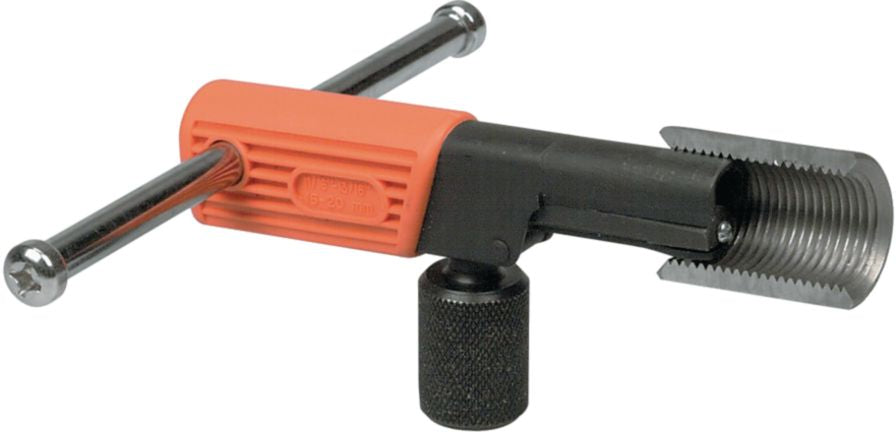

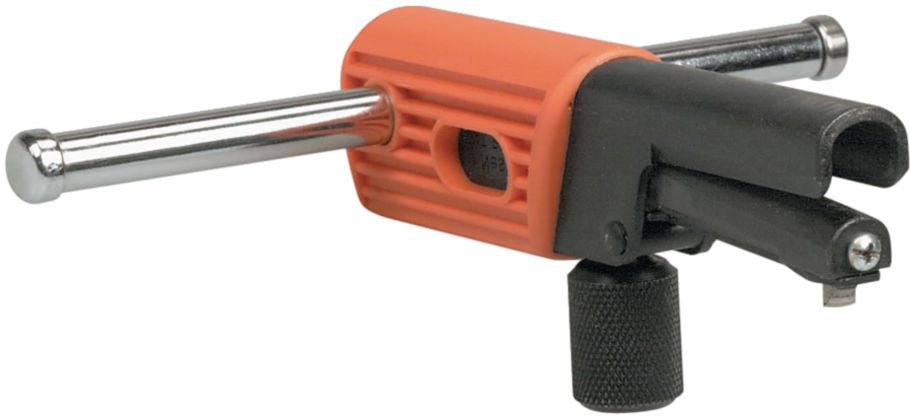

Turn knurled knob to fully retract the blade into the housing. Insert tool into the threaded hole or bore to be repaired. Turn knurled knob to extend blade into a thread groove on an undamaged section and tighten by hand only. Rotate tool by the cross-rod in the desired direction.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Damaged Screw Remover Extractor #2
Couldn't load pickup availability
Damaged Screw Remover Extractor #3
Couldn't load pickup availability
Damaged Screw Remover Extractor Kit 2Pcs
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Bumper Fascia Flares/Air Dam Push-Type Retainer
Couldn't load pickup availability
Damaged Screw Remover Extractor #2
Couldn't load pickup availability
Damaged Screw Remover Extractor #3
Couldn't load pickup availability
Damaged Screw Remover Extractor Kit 2Pcs
Couldn't load pickup availability
Universal External Thread Repair 1-3/8 to 6"
Couldn't load pickup availability
Universal Internal Thread Repair 7/8 to 1-1/4"
Couldn't load pickup availability
Universal External Thread Repair 1-3/8 to 6"
Couldn't load pickup availability
HD Locking Thread Insert Kit 5/16-20 to 1/2-20
Couldn't load pickup availability
Chuck, Quick Change, 1/4 Hex"
Couldn't load pickup availability
7/32˝ x 6˝ Snap-Ring Tool Holder
Couldn't load pickup availability
Product Description
• Quickly adjustable to any thread diameter and pitch within the size range indicated on tool• The blade, made of Rc 62 high-speed steel, is guided by the existing undamaged thread to regroove the damaged section
• All tools come supplied with standard blades
• An advantage over taps is the ability to enter below the first damaged grooves – often at the start of the thread – and work in an outward direction
Applicable to most kinds of thread – inch, metric, right hand, left hand, fine or coarse.
Recommended for large internal threads in:
• Oil and gas production and pipelines
• Mining industry
• Large truck and heavy soil moving equipment
• Large production machinery
Turn knurled knob to fully retract the blade into the housing. Insert tool into the threaded hole or bore to be repaired. Turn knurled knob to extend blade into a thread groove on an undamaged section and tighten by hand only. Rotate tool by the cross-rod in the desired direction.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 28753 |
|---|---|
| Style | Restorer |
| Diameter | 11/16 - 13/16 " |
| Thread | Internal |
| Pipe Size | 3/8 - 1/2 " |
| UNSPSC #: | 27112806 |
| TAA Compliant: | Yes |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
