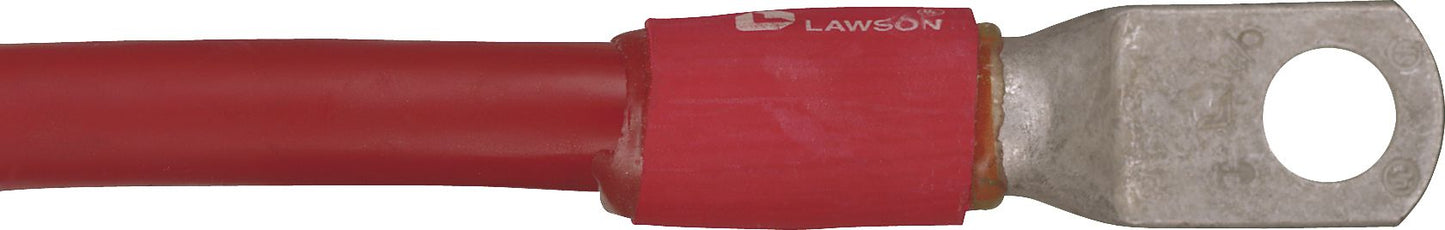

Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Red
(Pack of
5.0)
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.
• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
Pre-cut 1-1/2" lengths
For cable gauges 2 through 4/0
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 2-81
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Cable Tie Screw Mount #10 Screw Black
Couldn't load pickup availability
H3 Halogen Miniature Bulb 70W 24V
Couldn't load pickup availability
Heat Shrink Tubing 20 to 18 AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing Black 3 x 18"
Couldn't load pickup availability
Heat Shrink Tubing 10/3 SJO AWG Clear
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Vinyl Electrical Tape White 3/4" x 66'
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip 1/2" NPT
Couldn't load pickup availability
130C Linerless Rubber Splicing Tape Black 3/4" x 30'
Couldn't load pickup availability
Product Description
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
Pre-cut 1-1/2" lengths
For cable gauges 2 through 4/0
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 87745 |
|---|---|
| Type | Pre-Cut |
| Style | Heavy Wall |
| Wire Gauge Coverage | 2-4/0 AWG |
| Length | 1.5 " |
| Color | Red |
| I.D. Before Shrinkage | 1.10 " |
| I.D. After Shrinkage | .375 " |
| Shrink Ratio | 3 to 1 |
| Wall Thickness After Shrinkage | 0.120 " |
| Voltage Rating | 600 V |
| Temperature Rating | 194 °F |
| Elongation | 425 % |
| Tensile Strength | 1,542 PSI |
| Approvals | UL, CSA |
| Description | Pre-Cut Dual Wall Heat Shrink Tubing - Red |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
