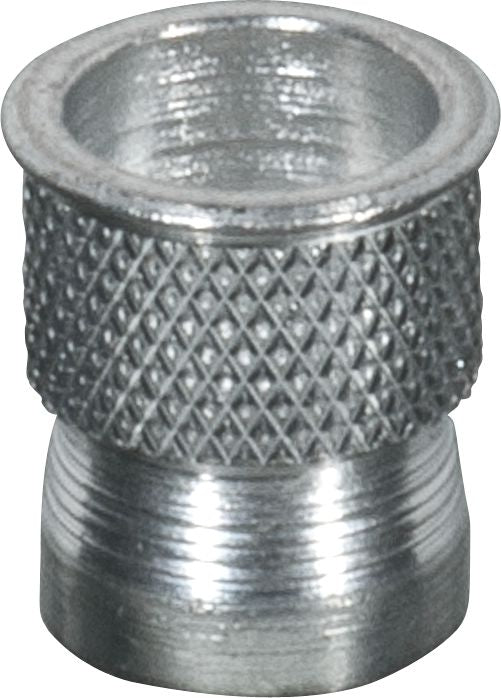

Threaded Insert for Soft Material #10-24
(Pack of
25.0)
• CAD-plated
• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 5/8-18 x 2-1/2"
Couldn't load pickup availability
U-Drive Screw Round Head #6 x 1/4"
Couldn't load pickup availability
U-Drive Screw Round Head #4 x 1/4"
Couldn't load pickup availability
Cable Tie Screw Mount #10 Screw Black
Couldn't load pickup availability
H3 Halogen Miniature Bulb 70W 24V
Couldn't load pickup availability
Cable Tie Screw Mount #8 Screw White
Couldn't load pickup availability
1/4-20 0-3/16 Grip Cert
Couldn't load pickup availability
1/4-20x1/2 Blind Cert
Couldn't load pickup availability
Standard Threaded Insert M5-0.8
Couldn't load pickup availability
Diamond Grip II Installation Kit 3/8-24
Couldn't load pickup availability
Diamond Grip II Installation Kit #10-32
Couldn't load pickup availability
Diamond Grip II Installation Kit 3/8-16
Couldn't load pickup availability
Product Description
• CAD-plated• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Technical Specifications
| Item#: | 95972 |
|---|---|
| Diameter | #10 |
| Thread Pitch | 24 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Soft Material Threaded Inserts |
| Body Type | Diamond Knurled |
| Hole Size | 0.297 " |
| Pilot Drill Size | 19/64 " |
| Pilot Drill Number | 84736 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.320 " |
| Body Diameter | 0.295 " |
| Length | 0.370 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
