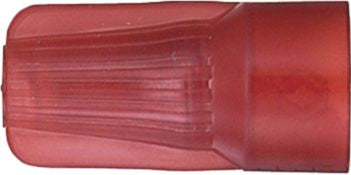

Sure-Lok Wire Connector 22 to 8 AWG Red
(Pack of
100.0)
• No pre-twisting of wires
• Special “wedge-edge” spring cuts grooves into the wires
• Resists loosening from vibration
• Rated 600V maximum at 221°F (105°C); 1,000V maximum in signs, fixtures and luminaries• Operating temperature range: –40°F to +221°F (–40°C to +105°C)
• Covers all splicing needs for 24 Ga. through 6 Ga. wire
• Can be reused for solid and stranded copper wires
• Can be used with two or more wires
• Easier to use for overhead splicing and difficult applications where space is a problem
• Can be used in circuits that need to be changed frequently without taping
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Standard Size Alligator Clip 10A Copper Green
Couldn't load pickup availability
Copper Test Clamp 75A Red
Couldn't load pickup availability
Standard Size Alligator Test Clip Assortment
Couldn't load pickup availability
H3 Halogen Miniature Bulb 70W 24V
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Wire Nut Twister 22-12 AWG Tan
Couldn't load pickup availability
Watertight Wire Nuts 4 - 8 Gauge/2 - 12 Gauge Yellow
Couldn't load pickup availability
Watertight Wire Nuts
Couldn't load pickup availability
High Temperature Wire Connector 22 to 14 AWG
Couldn't load pickup availability
Wire Nut Watertight 2 - 10 Gauge/2 - 6 Gauge Dark Blue
Couldn't load pickup availability
T/R Plus Wire Connector 22 to 8 AWG
Couldn't load pickup availability
High Temperature Wire Connector 22 to 14 AWG
Couldn't load pickup availability
Wire Nut Watertight 2 - 10 Gauge/2 - 6 Gauge Dark Blue
Couldn't load pickup availability
T/R Plus Wire Connector 22 to 8 AWG
Couldn't load pickup availability
Product Description
• No pre-twisting of wires• Special “wedge-edge” spring cuts grooves into the wires
• Resists loosening from vibration
• Rated 600V maximum at 221°F (105°C); 1,000V maximum in signs, fixtures and luminaries• Operating temperature range: –40°F to +221°F (–40°C to +105°C)
• Covers all splicing needs for 24 Ga. through 6 Ga. wire
• Can be reused for solid and stranded copper wires
• Can be used with two or more wires
• Easier to use for overhead splicing and difficult applications where space is a problem
• Can be used in circuits that need to be changed frequently without taping
Technical Specifications
| Item#: | P35117 |
|---|---|
| Wire Gauge | 22-8 AWG |
| Voltage Rating | 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures |
| Color | Red |
| Temperature Range | -40 to 221 F |
| Celcius Temperature Range | -40 to 105 C |
| Approvals | UL, CSA |
| Style | Sure-Lok Wire Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.72 lb |
