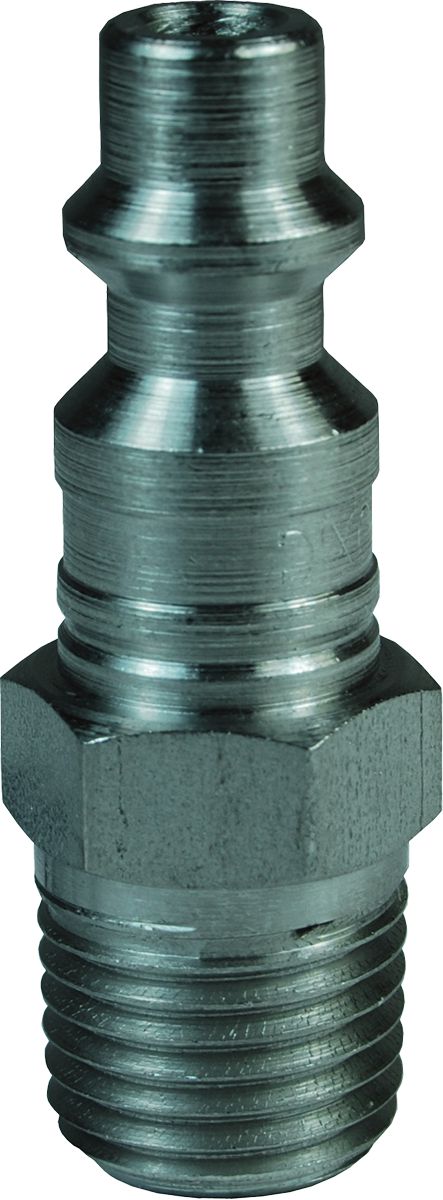

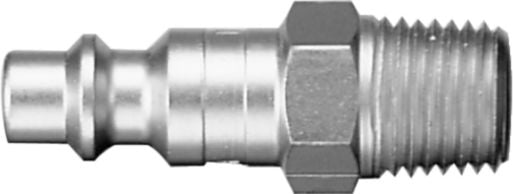

Nipple, Industrial, 1/4'' Body, 1/4-18 Male NPTF, 303 SS
(Pack of
1.0)
Easily connect and disconnect to fluid lines with this handy quick disconnect plug. Stainless steel design resists corrosion and a built-in sleeve guard minimizes accidental disconnect. This heavy-duty plug features a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Use with hydraulic systems, pneumatic tools, pressure washers and other applications where frequent hose disconnections are required.
• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Standard or Industrial Interchange Design
• Sized to fit 1/4-inch couplers and fittings
Standard or Industrial Interchange Design
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Nipple, Industrial, 1/4'' Body, 3/8'' Hose, Steel
Couldn't load pickup availability
Stainless Steel Standard Industrial Safety Push-Button Safety Coupler 1/2" Body x 3/8" FNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
Couldn't load pickup availability
Hose Barb Brass 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/2-14
Couldn't load pickup availability
Heavy-Duty Quick Disconnect Plug Steel 1/4 x 1/4"
Couldn't load pickup availability
EN-TW PTFE Non-Conductive Hose 5/16" 250Ft
Couldn't load pickup availability
E Crimp-On Hose End 13/32 x 3/8-18
Couldn't load pickup availability
E Crimp-On Hose End 5/16" x 1/4-18
Couldn't load pickup availability
Barb-Lok Hose End 1/2" (-8) x 7/8-14 (-10)
Couldn't load pickup availability
Barb-Lok Hose End 1/2" (-8) x 3/4-14 (-12)
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 9/16-18 (-6)
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Product Description
Easily connect and disconnect to fluid lines with this handy quick disconnect plug. Stainless steel design resists corrosion and a built-in sleeve guard minimizes accidental disconnect. This heavy-duty plug features a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Use with hydraulic systems, pneumatic tools, pressure washers and other applications where frequent hose disconnections are required.• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Standard or Industrial Interchange Design
• Sized to fit 1/4-inch couplers and fittings
Standard or Industrial Interchange Design
Technical Specifications
| Item#: | 1593554 |
|---|---|
| Type | Nipple |
| Style | Industrial |
| Body Size | 1/4 " |
| Thread Style | NPTF |
| Thread Size | 1/4 " |
| Working Pressure | 500 PSI |
| Material | 303 Stainless Steel |
| Length | 1.69 " |
| Hex Size | 9/16 " |
| Flow | 27 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.055 lb |
