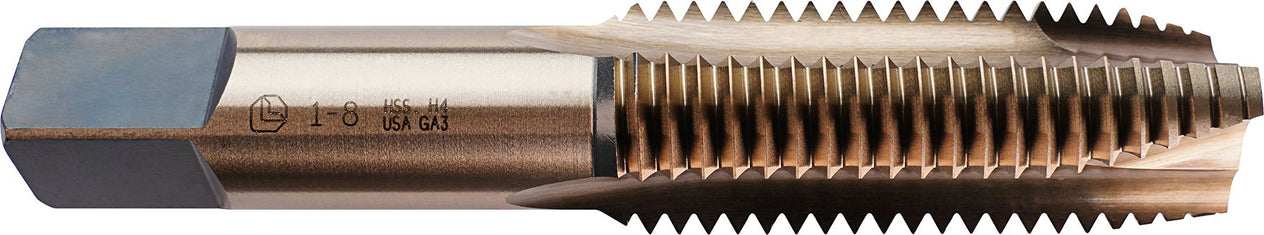

HSS Spiral Point Hand Tap 1-8
(Pack of
1.0)
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
NOTE: Item Nos. 61144 through 61149 do not have reduced threads.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Abrasive Bristle Wire Belt Steel 23mm
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
Couldn't load pickup availability
Air Saw Blade 4" 32TPI
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
HSS Spiral Point Hand Tap 8-32
Couldn't load pickup availability
HSS Spiral Point Hand Tap M8 x 1.25
Couldn't load pickup availability
Pilotdrive Cryotap 1/2"-13 Starter Hand Tap
Couldn't load pickup availability
Cryo-Drap #10-24 Drill & Tap Combo, 135o Split Point, W/Flats
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap 1/2-13
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 1-8
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 1/4"
Couldn't load pickup availability
Zirconium Grain Locking Grinding Disc 2"
Couldn't load pickup availability
Abrasive Bristle Wire Belt Steel 23mm
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
NOTE: Item Nos. 61144 through 61149 do not have reduced threads.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61148 |
|---|---|
| Type | Fractional |
| Diameter | 1 " |
| Pitch | 8 |
| Flutes | 3 |
| Thread Length | 2-1/2 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | 7/8 " |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.69 lb |
