Home Brass Forged Body Ball Valve Brass 2 x 2"
Brass

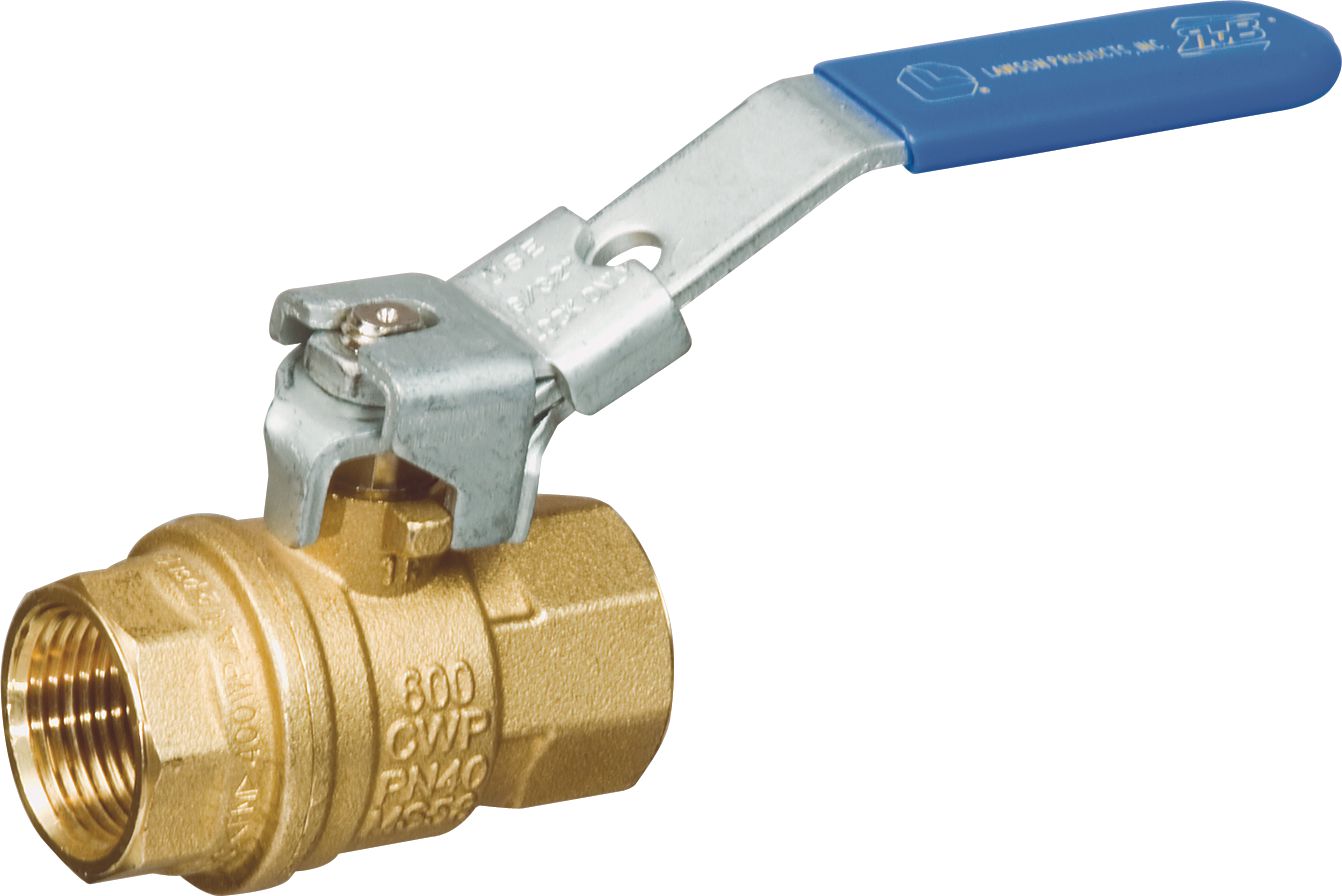

Forged Body Ball Valve Brass 2 x 2"
(Pack of 1.0)

Kent Automotive

For use in gas and pneumatic lines, this Forged Body Ball Valve is ideal for high-pressure and high-temperature applications where reliability and safety are important. Made of brass with dual sealing system that allows valve to be operated in either direction making installation easier. Other advantages include no metal-to-metal moving parts, a handle clearly showing ball position and no maintenance requirements.
• 24-hour 100% seal test guaranteed
• Working pressure: 600 PSI
• Operating temperature: –40°F to +350°F
• Chrome plated brass ball for longer life
• Silicone-free lubricant on all seals
• Approvals: CSA, FM, UL, CUL, Federal Specification WW-V-35C
Applications:
• Gas
• Pneumatic lines
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Two FPM O-rings at the stem for maximum safety
• Geomet® carbon steel handle with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design

Read More
Check availability inventory

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Elbow Brass Inverted Flare 45° 1/8-27 x 1/4"

Item#: 5268

Air Line Union SAE 45° Flare Brass 5/16 x 5/16"

Item#: 5150

Elbow Brass Inverted Flare 90° 1/2-14 x 1/2"

Item#: 5265

Polyethylene Tubing 1/4" OD x 100' Blue

Item#: 90329

Polyethylene Tubing 3/8" OD x 100' Black

Item#: 90325

Polyethylene Tubing 3/8" OD x 100' Blue

Item#: 90330

180° Hose Reel Swivel Mount HRS180

Item#: 1690599

Rubber Air Hose Assembly 1/4" x 100'

Item#: 1690565

Avagard Poly Air Hose 1/4" X 25'

Item#: 1690542

Rocker Molding Clip with Sealer Nylon Gray 12mm

Item#: P85430

Front Fender Push-Type Retainer Nylon 18mm

Item#: KT13984

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

Product Description

For use in gas and pneumatic lines, this Forged Body Ball Valve is ideal for high-pressure and high-temperature applications where reliability and safety are important. Made of brass with dual sealing system that allows valve to be operated in either direction making installation easier. Other advantages include no metal-to-metal moving parts, a handle clearly showing ball position and no maintenance requirements.
• 24-hour 100% seal test guaranteed
• Working pressure: 600 PSI
• Operating temperature: –40°F to +350°F
• Chrome plated brass ball for longer life
• Silicone-free lubricant on all seals
• Approvals: CSA, FM, UL, CUL, Federal Specification WW-V-35C
Applications:
• Gas
• Pneumatic lines
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Two FPM O-rings at the stem for maximum safety
• Geomet® carbon steel handle with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design

Technical Specifications

Item#: 63141
Fitting Type Ball Valve
Configuration Forged Body for Gas Lines
Material Brass
Connection Type A x B Female NPT x Female NPT
Fitting Dimension A 2-11-1/2
Fitting Dimension B 2-11-1/2
Working Pressure 600 PSI
Temperature Range -40 to 350 °F
UNSPSC #: 40170000
TAA Compliant: No
Weight: 3.92 lb
