FLNR Series Class RK5 Indicator Fuse 80A
(Pack of
1.0)
• Fuses provide visual blown fuse indication at a glance
• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production

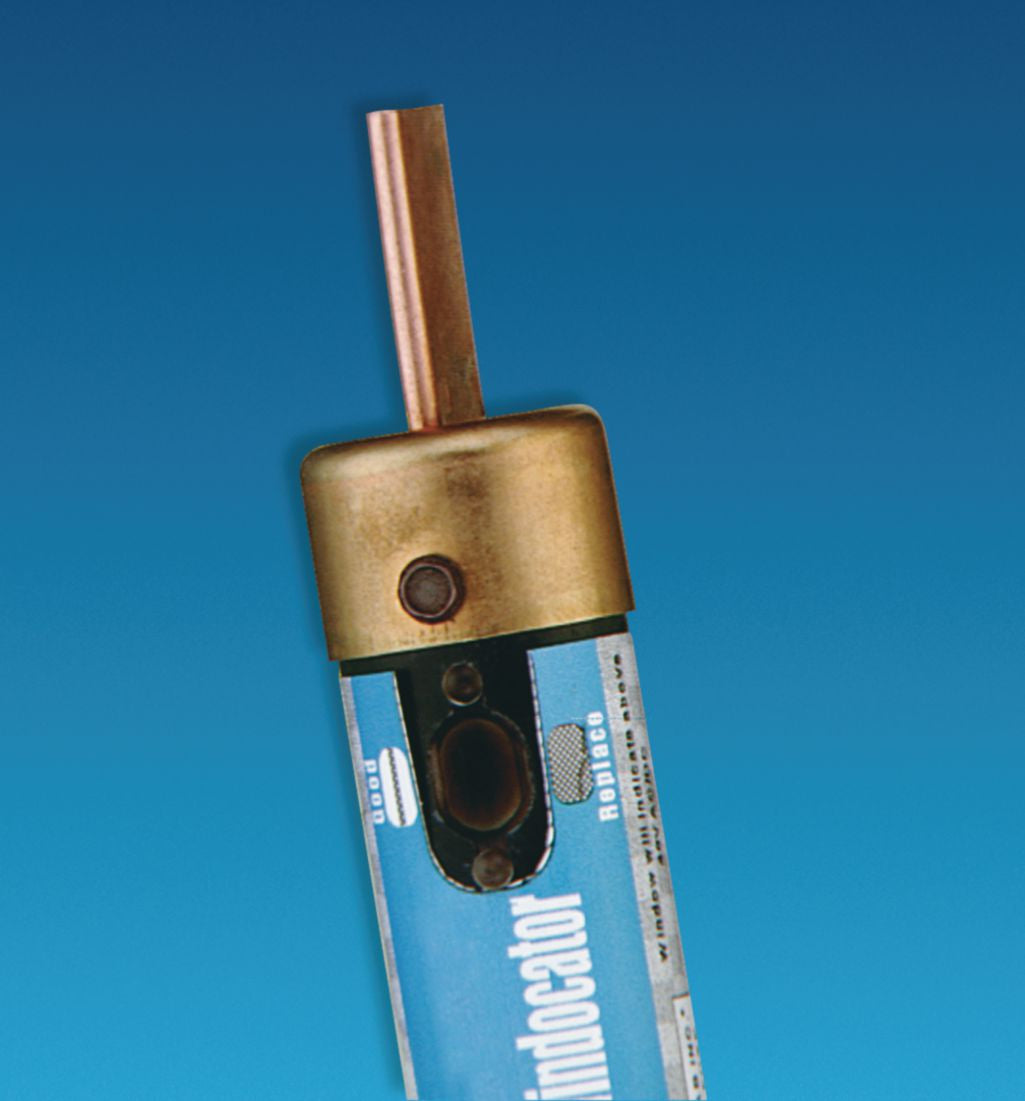

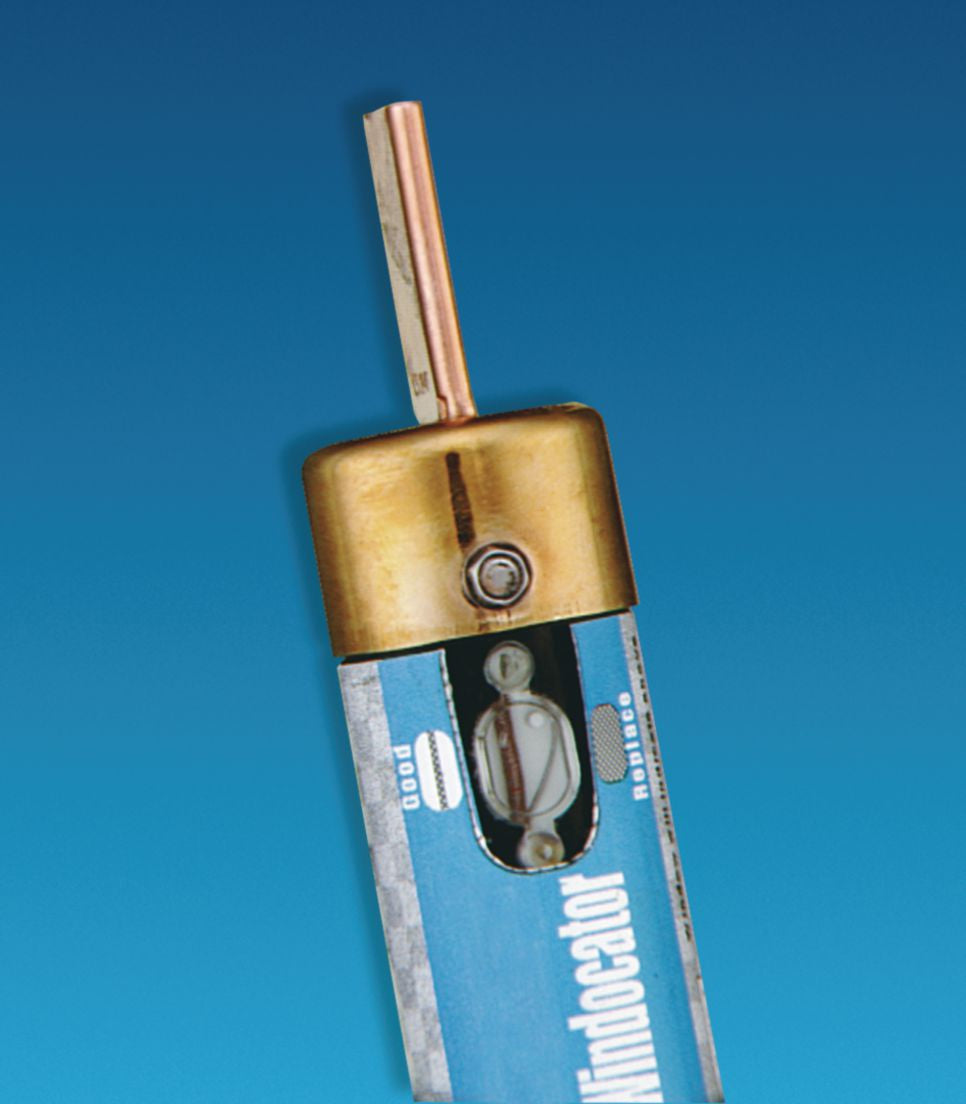

• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 250V AC, 125V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
Fuses 70A and higher have blade ends.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Standard Size Alligator Clip 5A Steel Yellow
Couldn't load pickup availability
Test Lead Wire 18 AWG 100' Red
Couldn't load pickup availability
Standard Size Alligator Clip 5A Steel Blue
Couldn't load pickup availability
FLNR Series Class RK5 Indicator Fuse 40A
Couldn't load pickup availability
FLSR Series Class RK5 Indicator Fuse 10A
Couldn't load pickup availability
523 Series Midget Fuse 8A
Couldn't load pickup availability
235 Series Glass Body Fuse 5A
Couldn't load pickup availability
313 Series Glass Body Fuse 15A
Couldn't load pickup availability
KLDR Series Class CC Fuse 3A
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
Couldn't load pickup availability
Grille Clip Steel Zinc
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Product Description
• Fuses provide visual blown fuse indication at a glance• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 250V AC, 125V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
Fuses 70A and higher have blade ends.
Technical Specifications
| Item#: | 60058 |
|---|---|
| Style | FLNR_ID Indicator Class RK5 Fuses |
| Amperage | 80 A |
| Rating | 250V AC, 125V DC Maximum V |
| Approvals | UL, CSA |
| Type | Fuses |
| Replaces | competitors FRN-R and TRN-R non-indicating fuses |
| UNSPSC #: | 39121627 |
| TAA Compliant: | Yes |
| Weight: | 0.29 lb |
