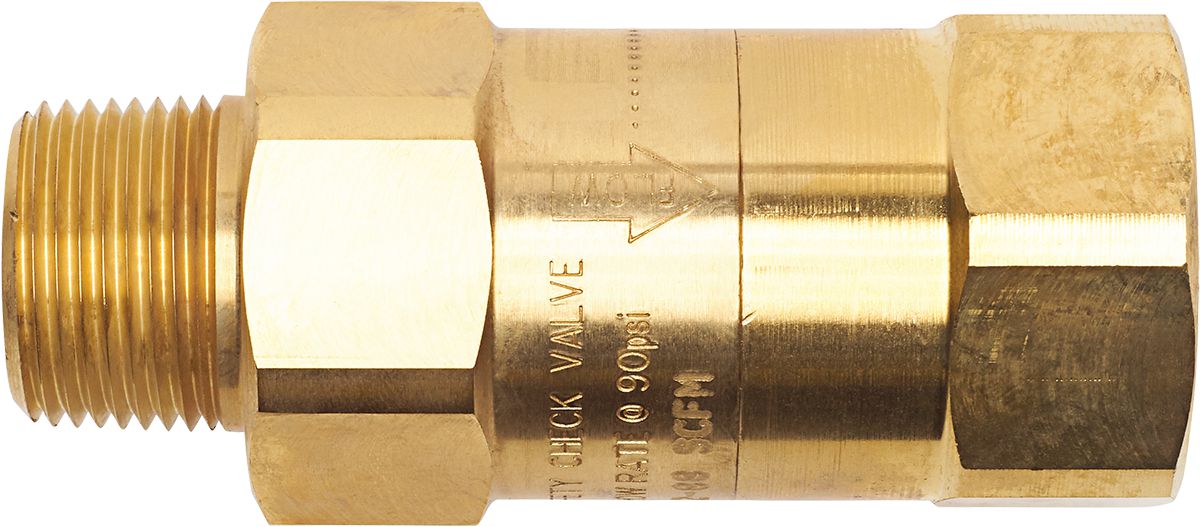

Excess Flow Safety Check Valve 3/8-18 x 3/8-18
(Pack of
1.0)
Eliminate excess flow problems and resulting safety issues with Excess Flow Safety Check Valves. These valves automatically sense surges in air flow, shutting the flow down if the surge is in excess of the valve rating.
• Fully conforms to OSHA 1926.302 requiring a safety device at the surface of the air supply and at the branch line• Prevents hose whip should the hose be cut
NOTE: Not designed to operate with fluctuating or unregulated air pressures.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
High Flow Safety Push-Button Safety Coupler 3/8" Body x 1/4" FNPT
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2 x 1/2"
Couldn't load pickup availability
Coupler, Industrial, 1/4'' Body, 3/8-18 Female NPTF, Brass
Couldn't load pickup availability
Hose Barb Brass 3/16" x 1/8-27
Couldn't load pickup availability
Hose Barb Brass 1/8" x 1/8-27
Couldn't load pickup availability
E Crimp-On Hose End 13/32" x 9/16-18
Couldn't load pickup availability
E Crimp-On Hose End 5/16" x 9/16-18
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.49" x 250'
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 7/16-20 (-4)
Couldn't load pickup availability
Barb-Titeâ„¢ Straight Hose End Rigid 1/4"
Couldn't load pickup availability
Barb-Lok Hose End 1/2" (-8) x 3/4-16 (-8)
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Product Description
Eliminate excess flow problems and resulting safety issues with Excess Flow Safety Check Valves. These valves automatically sense surges in air flow, shutting the flow down if the surge is in excess of the valve rating.• Fully conforms to OSHA 1926.302 requiring a safety device at the surface of the air supply and at the branch line• Prevents hose whip should the hose be cut
NOTE: Not designed to operate with fluctuating or unregulated air pressures.
Technical Specifications
| Item#: | 52562 |
|---|---|
| Description | Check Valve |
| Connection Type A x B | Male NPT x Female NPT |
| Type | Air Line |
| Fitting Dimension A | 3/8-18 |
| Hex Size | 1 " |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 0.35 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
