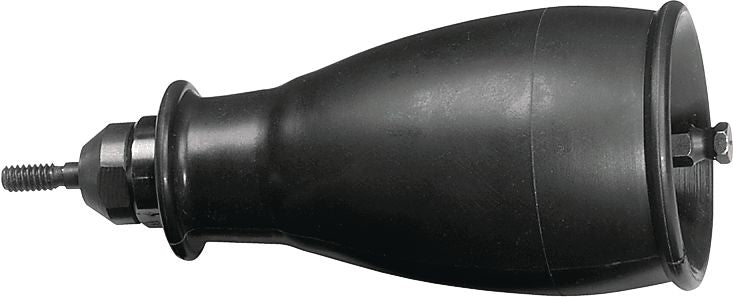

Cordless Drill Installation Tool 5.12 x 2.36"
(Pack of
1.0)
• Easily converts cordless drill motors into a threaded insert installation tool
Includes the following conversion kits: 8–32, 10–24, 10–32 and 1/4–20
• Maximum Stroke: 0.550" (14mm)
• Length x Dia.: 5.12" x 2.36" (130mm x 60mm)
• Drive Shank Dia.: 1/4" (6.35mm)
• Weight: 1 lb.
• Battery for Cordless Drill: 12V minimum with adjustable torque
• Threaded Insert Sizes: 6–32 through 5/16–18*
Use as Intended.NutDrill™ is intended to be used as an attachment with cordless drilling machines of 12V or more with reversible turn and torque settings.
Installation Procedures:
1. Select the correct mandrel and nosepiece (conversion kit).
2. Install mandrel into the NutDrill™.
3. Install the nosepiece.
4. Choose a battery-operated drill motor (12V minimum).

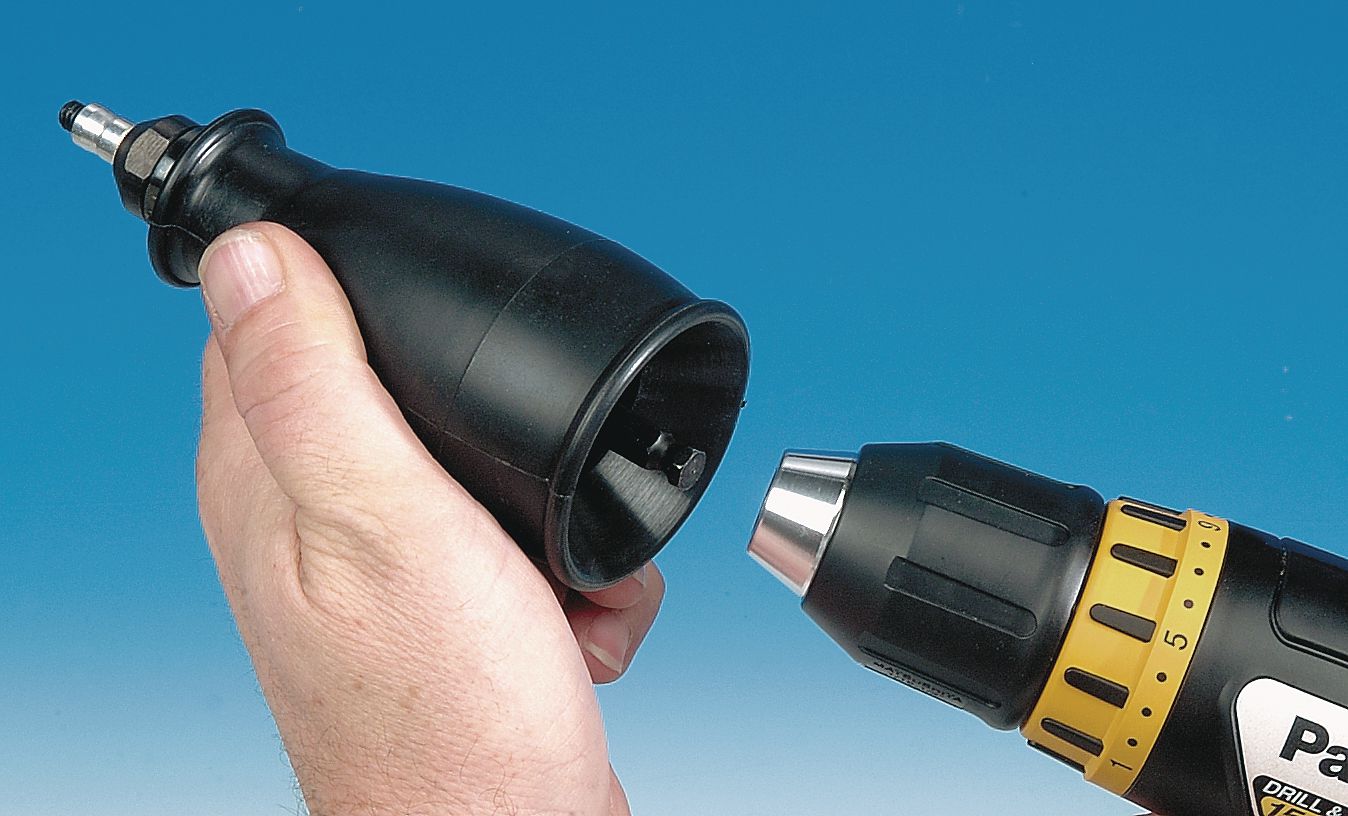

5. Insert NutDrill™ hex shank into the jaws of the drill motor.
6. Set torque to the lowest setting. (If the torque setting is too high, the mandrel will break.)
7. While holding NutDrill™ outer body in one hand, install the threaded insert onto the mandrel and slowly turn the drill motor (forward) to start setting the insert. Increase torque until insert is properly set.
8. After insert is properly set, switch the drill motor to reverse and slowly back the mandrel out of the set insert.
NOTE: Drill motor not included
*NutDrill™ will not set 5/16–18 Diamond Grip Threaded Inserts
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Riv-Float Rivet Nut Hand Tool 1/4-20
Couldn't load pickup availability
Replacement Head Set for FLEX-5 Tool 5/16-18
Couldn't load pickup availability
Replacement Head Set for M4/M5 Tool M12
Couldn't load pickup availability
Replacement Mandrel for LHF 202 Tool M8
Couldn't load pickup availability
Replacement Head Set for SSG Tool 1/4-20
Couldn't load pickup availability
Replacement Mandrel for M4/M5 Tool 10-24
Couldn't load pickup availability
Replacement Mandrel for SSG Tool 3/8-16
Couldn't load pickup availability
Rivet Nut Hand Tool #10-24
Couldn't load pickup availability
Replacement Mandrel for LHF 202 Tool 10-32
Couldn't load pickup availability
Replacement Mandrel for SSG Tool 3/8-16
Couldn't load pickup availability
Rivet Nut Hand Tool #10-24
Couldn't load pickup availability
Replacement Mandrel for LHF 202 Tool 10-32
Couldn't load pickup availability
Product Description
• Easily converts cordless drill motors into a threaded insert installation toolIncludes the following conversion kits: 8–32, 10–24, 10–32 and 1/4–20
• Maximum Stroke: 0.550" (14mm)
• Length x Dia.: 5.12" x 2.36" (130mm x 60mm)
• Drive Shank Dia.: 1/4" (6.35mm)
• Weight: 1 lb.
• Battery for Cordless Drill: 12V minimum with adjustable torque
• Threaded Insert Sizes: 6–32 through 5/16–18*
Use as Intended.NutDrill™ is intended to be used as an attachment with cordless drilling machines of 12V or more with reversible turn and torque settings.
Installation Procedures:
1. Select the correct mandrel and nosepiece (conversion kit).
2. Install mandrel into the NutDrill™.
3. Install the nosepiece.
4. Choose a battery-operated drill motor (12V minimum).
5. Insert NutDrill™ hex shank into the jaws of the drill motor.
6. Set torque to the lowest setting. (If the torque setting is too high, the mandrel will break.)
7. While holding NutDrill™ outer body in one hand, install the threaded insert onto the mandrel and slowly turn the drill motor (forward) to start setting the insert. Increase torque until insert is properly set.
8. After insert is properly set, switch the drill motor to reverse and slowly back the mandrel out of the set insert.
NOTE: Drill motor not included
*NutDrill™ will not set 5/16–18 Diamond Grip Threaded Inserts
Technical Specifications
| Item#: | 28613 |
|---|---|
| Type | NutDrill Installation Tool |
| Pipe Size | 1/4 " |
| Size | W/4 " |
| Description | NutDrillT Installation Tool |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
