Axion MSR Wall Mount Eye/Face Wash
(Pack of
1.0)

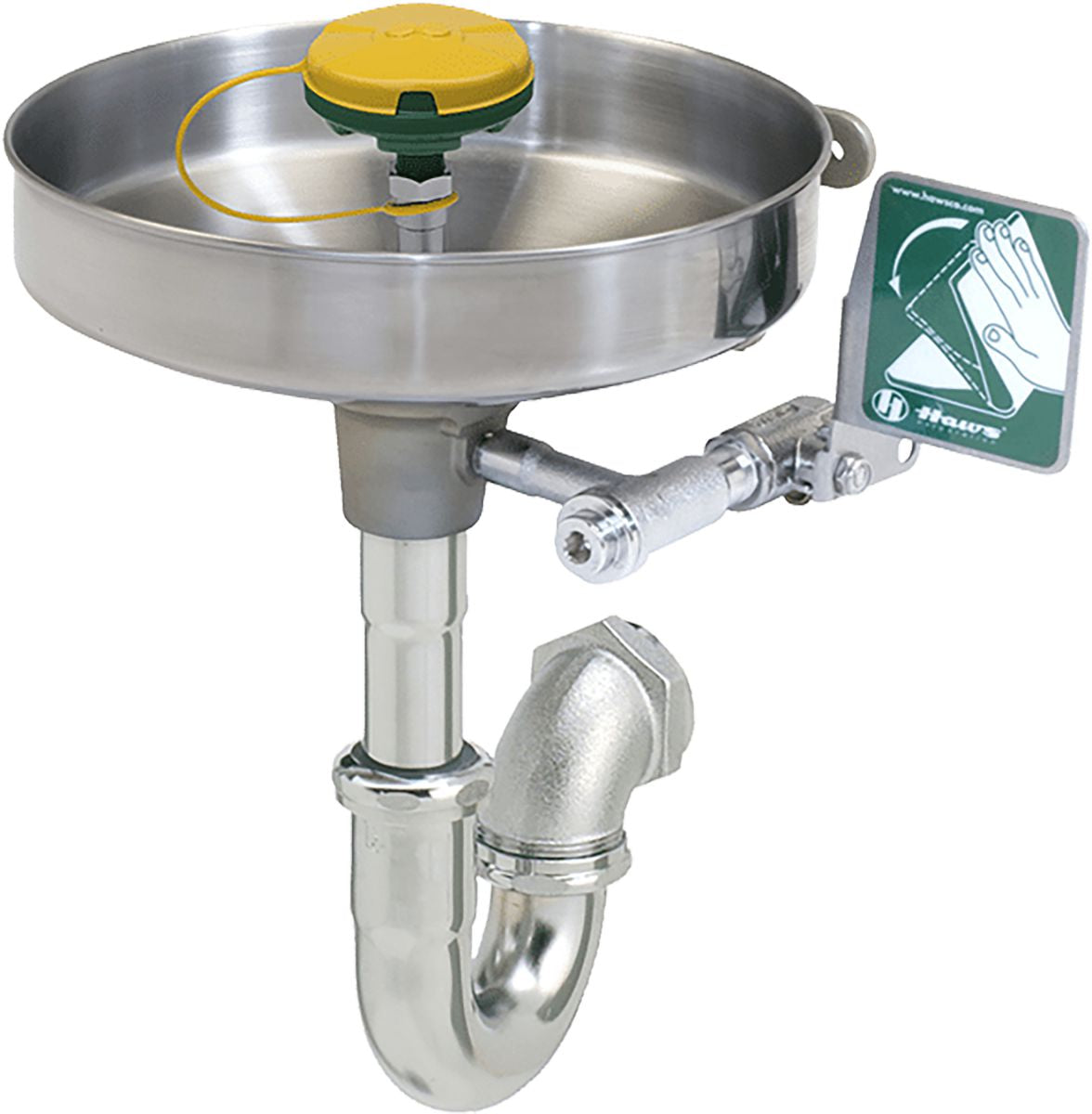

A wall mounted eye/face wash includes a stainless steel 11" round bowl. The wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, drain trap and tailpiece, yellow plastic pop-off dust cover for eyewash head, tailpiece and trap, universal sign, 1/2" NPT inlet, and 1-1/2" NPT waste.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) stainless steel receptor, aluminum wall bracket and tailpiece and trap
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/2" NPT
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Eyewash Bottle, Screw Cap, 8 oz.
Couldn't load pickup availability
Eyewash Bottle, Screw Cap, 16 oz.
Couldn't load pickup availability
Eyewash Stations, Two 32 oz. Screw Cap Bottle
Couldn't load pickup availability
Wypall L30 Wiper 16.4 x 9.8"
Couldn't load pickup availability
650ml Paint Spray Cup System
Couldn't load pickup availability
180ml Spray Cup System - Solvent-Based
Couldn't load pickup availability
Wypall L30 Wiper 16.4 x 9.8"
Couldn't load pickup availability
650ml Paint Spray Cup System
Couldn't load pickup availability
180ml Spray Cup System - Solvent-Based
Couldn't load pickup availability
Air Inlet Grille/Bumper Fascia Push-Type Retainer
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Pure Flow 1000 Eyewash Station
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Eyewash Refill Cartridge
Couldn't load pickup availability
Product Description
A wall mounted eye/face wash includes a stainless steel 11" round bowl. The wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, drain trap and tailpiece, yellow plastic pop-off dust cover for eyewash head, tailpiece and trap, universal sign, 1/2" NPT inlet, and 1-1/2" NPT waste.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) stainless steel receptor, aluminum wall bracket and tailpiece and trap
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/2" NPT
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647981 |
|---|---|
| Style | Wall Mount |
| Type | Eye/Face Wash Station |
| Description | Eye/Face Wash Station |
| Flow Rate | 10 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified |
| Material | Plastic/Chrome-Plated Brass/Stainless Steel/Aluminum |
| Mount Style | Wall |
| Color | Silver |
| Eyewash Bowl Diameter | 11 " |
| Width | 14-3/4 " |
| Height | 14-1/16 " |
| Eye Wash Material | Plastic |
| Body Material | Stainless Steel |
| Includes | Dust Cover, Inspection Tag, Tailpiece and Trap, Universal Identification Sign, Wall Bracket |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
