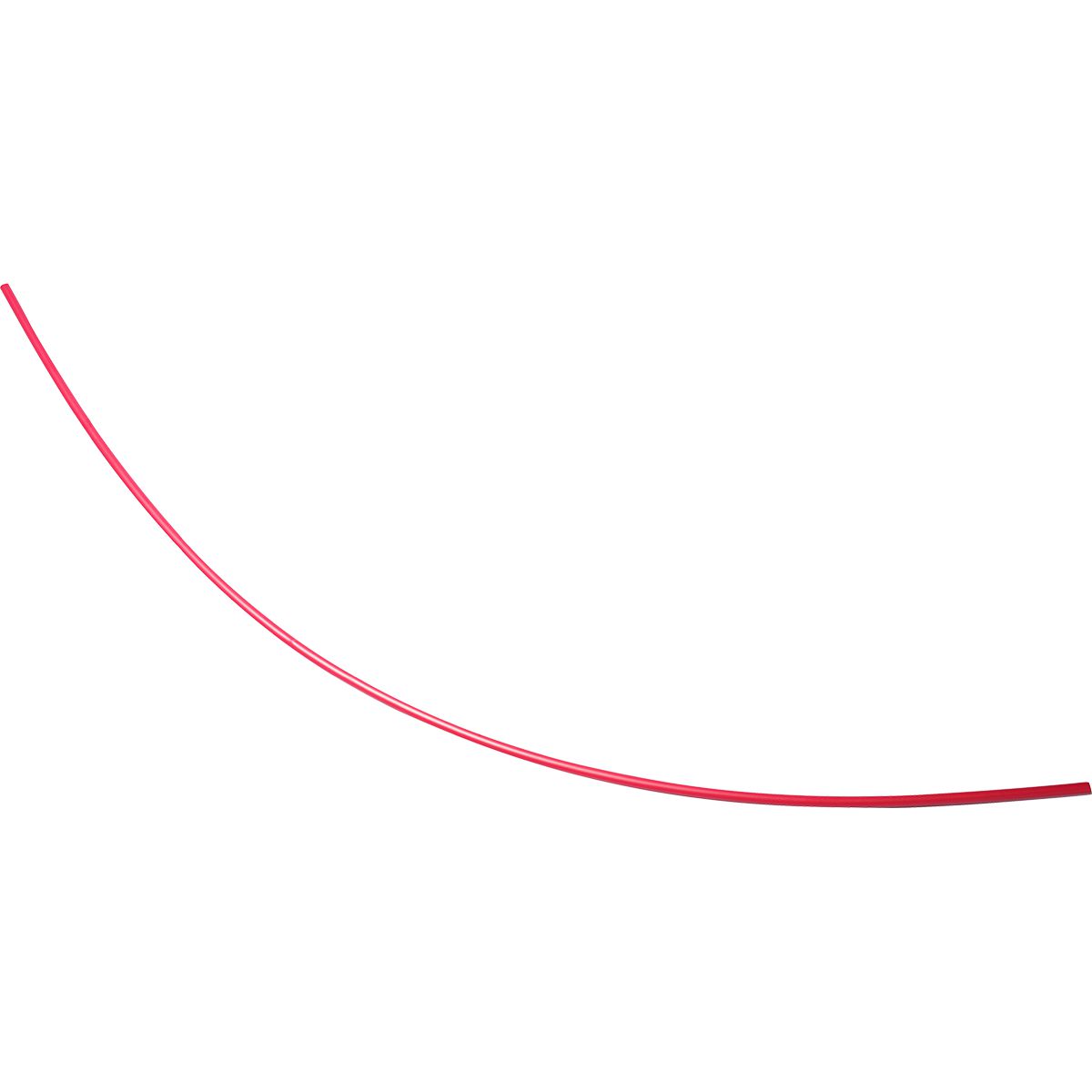

3/8 x 4" Red Thermapod Heat Shrink Tube
(Pack of
1.0)
Thermal Shrinkable Wire Protection
Double Layer . . . Double Protection
• Thermapod™ is an easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire. Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsuliation and strain damage from flexing
• Temperature Rating: -67°F to +230°F/ -55°C to +110°C
• Shrink Temperature: 275°F/135°C
Couldn't load pickup availability
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Cable Tie Screw Mount #10 Screw Black
Couldn't load pickup availability
H3 Halogen Miniature Bulb 70W 24V
Couldn't load pickup availability
Heat Shrink Tubing 20 to 18 AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing Black 3 x 18"
Couldn't load pickup availability
Heat Shrink Tubing 10/3 SJO AWG Clear
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Vinyl Electrical Tape White 3/4" x 66'
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip 1/2" NPT
Couldn't load pickup availability
130C Linerless Rubber Splicing Tape Black 3/4" x 30'
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire ProtectionDouble Layer . . . Double Protection
• Thermapod™ is an easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire. Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsuliation and strain damage from flexing
• Temperature Rating: -67°F to +230°F/ -55°C to +110°C
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21862153 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 12-8 AWG |
| Diameter | 3/8 " |
| Length | 4 ft |
| Color | Red |
| I.D. Before Shrinkage | 0.375 " |
| I.D. After Shrinkage | 0.135 " |
| Shrink Ratio | 3:1 |
| Dielectric Strength | 500 V/mil |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | SAE-AMS-DTL - 23053/4, CL-1 |
| Description | Thermapod Heat Shrink Tubing Red 3/8 x 4' |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.65 lb |
