1/2"-4" NPT, 240V 60 Hz Threading Machine
(Pack of
1.0)

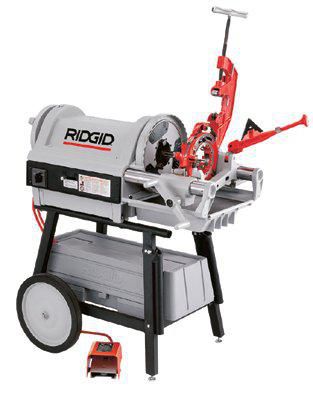

• Shown on optional No. 200A stand
• Threads 1/4"-2" pipe at 36 RPM and 2 1/2"- 4" at 12 RPM
• The 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
• An induction motor helps insure sound levels well within the limits set by the regulating authorities
• A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
• 1/4" - 2" Universal Die Head; 2 1/2" - 4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads
• Constant and proper lubrication of dies and workpiece with through-head oiling
• Motor Control: Reverse/off/forward, heavy-duty rotary-type and integral foot switch
• Gear Box: Two-speed gear box 3:1 ratio
• Chuck: Hammer-type with replaceable rocker-action jaw inserts
• Oiling: Through-die head
• Pump: Self-priming, GEROTO-type, automatic-reversing, constant-flow
• CSA
• UL
Product Description
• Shown on optional No. 200A stand• Threads 1/4"-2" pipe at 36 RPM and 2 1/2"- 4" at 12 RPM
• The 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
• An induction motor helps insure sound levels well within the limits set by the regulating authorities
• A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
• 1/4" - 2" Universal Die Head; 2 1/2" - 4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads
• Constant and proper lubrication of dies and workpiece with through-head oiling
• Motor Control: Reverse/off/forward, heavy-duty rotary-type and integral foot switch
• Gear Box: Two-speed gear box 3:1 ratio
• Chuck: Hammer-type with replaceable rocker-action jaw inserts
• Oiling: Through-die head
• Pump: Self-priming, GEROTO-type, automatic-reversing, constant-flow
• CSA
• UL
Technical Specifications
| Item#: | 1281689 |
|---|---|
| Style | Model 1224 Power Threading Machines |
| Voltage | 240 V |
| Phase | Single |
| Speed | 36, 12 RPM |
| Pipe Capacity | 1/2 in (NPT) [Min], 4 in (NPT) [Max] |
| Model Number | 1224 |
| Frequency | 60 Hz |
| Power Capacity | 1-1/2 HP |
| UNSPSC #: | 27000000 |
| TAA Compliant: | Yes |
